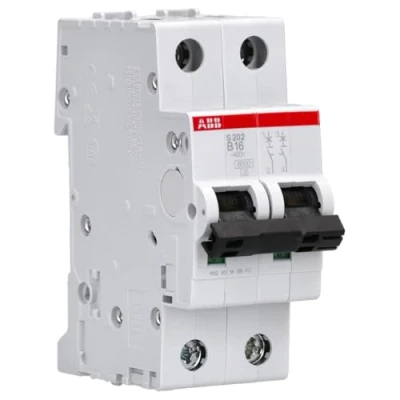

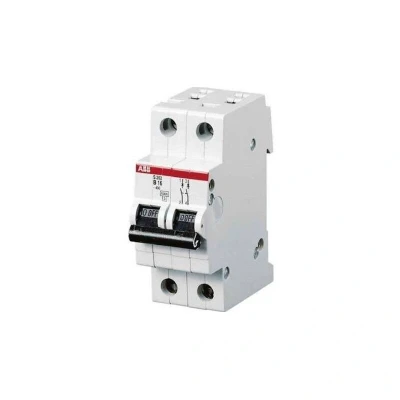

ABB S202 B16 Miniature Circuit Breaker, 2 Pole, Type B, 6/10kA Breaking Capacity, 16 Amp Current (2CDS252001R0165)

Amazon Marketplace

Wide and complete range of MCB to cover different applications and markets: Screwless, home, ring tongue, UL, universal current, direct current, marine, railway are some of the keywords in S 200 dictionary Meeting worldwide standards, you can use the same basic technology throughout the world for nearly every application and installation type S200 MCBs range are completed with a wide range of accessories that enlarge the functions of the MCB not only as a protection devices, but even for control and monitor remotely the installation Space and time saving thanks to the unique bottom-fixing auxiliary contact 1Patented twin terminals with captive screws: highest comfort, safety and flexibility, Weight: 0.01 Pounds, Manufacturer: ABB

ManoMano

General description The Abb 352263 Circuit Breaker S202 is a reliable electrical component designed for circuit protection. It features a trip characteristic of B, making it suitable for various applications. Technical specifications Rated current: 16 A Rated voltage: 440 V Breaking capacity (short circuit): 6 kA (according to EN 60898) Voltage type: AC Frequency: 50/60 Hz Overvoltage category: 3 Pollution degree: 2 Width: 2 modular spacings Depth: 69 mm Degree of protection (IP): IP20
