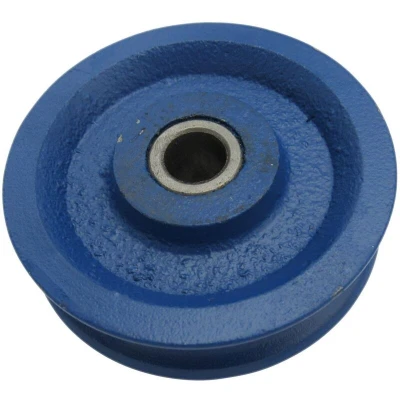

Blue Painted 150MM Cast Iron Sheave with Bush

150MM Blue PainteD Cast Iron Sheave With Bush Our heavy duty 150mm blue painted spare sheave is made from cast iron steel and would make an ideal replacement for a broken sheave. This pulley wheel sheave is suitable for a 16mm diameter wire rope. Sheaves can be found in a range of equipment such as pulley blocks or in equipment that uses wire cable. They are especially prevalent in the industrial sector, whilst also being commonplace in the agricultural and marine industries. We can provide replacement sheaves for sizes 75mm (8mm wire) to 300mm (25mm wire). Please ensure to choose the correct size for your application from the table below. Product Code A (MM) B (MM) C (MM) D (MM) SFSH075 74.7 11.9 19.5 12.4 SFSH100 99.7 16.9 23.9 13.7 SFSH125 124.8 19.7 27 16.9 SFSH150 149 27.9 32.8 19.4 SFSH175 177 31.9 40 23.3 SFSH200 199 37.6 47 26 SFSH250 248 48 58 29 SFSH300 298 52 61.1 37.6 Product Code - SFSH250
