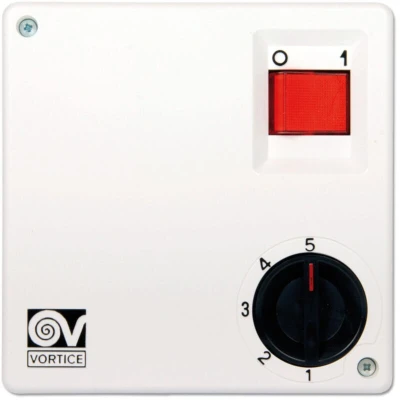

CASAFAN SCNRL5 Wall Switch, 5 setting Transformer, For Ceiling Fan

ManoMano

Dimensions and technical details 5-step transformer Maximum load: 0.45 A Steps: 75 / 110 / 150 / 180 and 230 V Max. permitted ambient temperature 40°C Insulated energy-saving transformer 2-pole, illuminated on / off switch Little interference liability, low-loss and noiseless fan operation Housing: made of synthetic material Colour: white housing suitable for surface-mounted installation on the wall housing for flushed-mounted installation is available separately In order to control the speeds of motors that have an option for speed control, transformers are used. The SCNR5 series is designed for ceiling fans (SCNR5), or in-line and wall fans (SCNR5- CA). Model Item description SCNR5 5 speed step transformer, only for ceiling fans, on / off switch SCNR5-CA 5 speed step transformer, NOT for ceiling fans SCNRL5 5 speed step transformer with additional light switch, on / off switch, only for ceiling fans with lighting SCRR5 5 speed step transformer, with additional light switch, on / off

Zoro Tools

SCNRL5 wall switch, 5-setting transformer, for ceiling fan. Supplied = assembled. Colour = white. Product type = accessories for ceiling fans. SCNRL5, 5-stage transformer for hum-free control of ceiling fans. With illuminated on/off switch. With addition on/off light switch. The transformer operates with a coiled copper transformer. 2 separate phases (L) are required for switching the motor and light separately. The delivery includes a surface-mounted housing, installation in flush-mounted sockets in special FM housing (KitSCB5, #22483) possible. Motor power max. 100 W, lighting max. 300 W.
