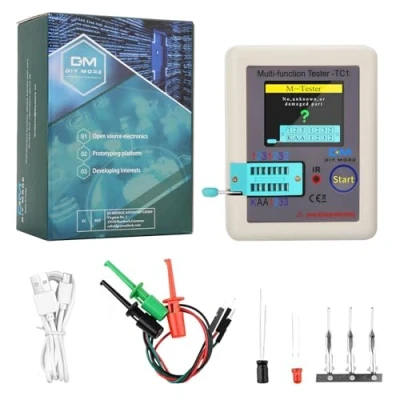

diymore LCR TC1 ESR Tester Transistor Inductance Capacitance Resistance Meter Multi Function TFT for Diode Triode Capacitor Resistor NPN PNP MOSFET

【Multifunction Tester:】 To detect NPN and PNP transistors, capacitors, resistors, diodes, triodes, N and MOSFETs with P channel, JFET, IGBT, Triac and battery, resistor and capacitor and other components, etc. 【TFT graphic display(160x128)】: Detector to insert the component pins into the area, then the small handle and the corresponding one that will automatically test, at the end the results are displayed on the back clear TFT screen. Support Chinese and English. 【IR decoder】: After detection, align the infrared remote control with the light "IR", then press the remote control button, if the success detector decodes, the data code and infrared waveform is displayed. 【Charge indicator LED】: If the black screen may be out of power, please fully charge the device to test. When charging, the charging indicator will be light red, and when it is full, it will light green.Warm Reminder: The charging input voltage is 4.5V, please do not use TC1 ESR Tester Transistor under overpressure, otherwise the tester will be damaged. 【Automatic calibration】: Short-circuit three test sockets, short press the multi-function button, the tester will automatically calibrate. After disconnecting the short-circuit according to the prompt during the calibration process, no other operations are required(If you have any questions, please feel free to contact us)
