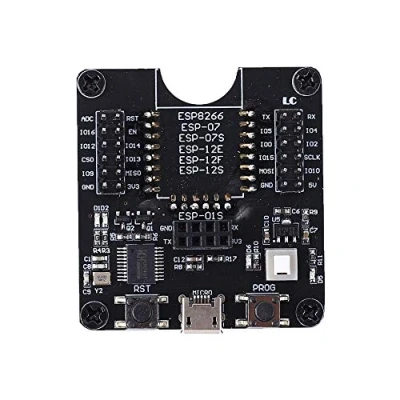

DONGKER ESP8266 Development Board, Programmer for ESP 12S/12F/12E/07S/07/01S/01 Modules, Black, Technical Users, Electronics Enthusiasts,

It is a Downloader for ESP-12S/12F/12E/07S/07S/01S/01 WIFI Wireless Module.It has output all GPIO ports for user debugging. Use Steps:Install UART Driver Software on PC.Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'.Insert ESP8266 module on Shiled.Connect module to PC by USB cable. Download automatically:Open FLASH download tool.Set software parameters as shown.Click START button on software to download firmware. Manual download:Open FLASH download tool.Set software parameters as shown.Keep press PROG button about 5second.Then short press Reset button.Click START button on software to download firmware. Chip clip fixing, Super simple operation, Repeatedly used . Suitable model:ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01
