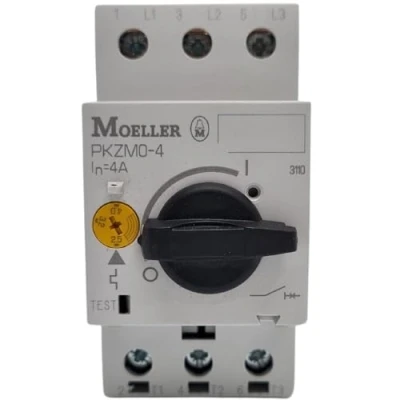

Eaton PKZM0 4 MPCB 2.5 4A Rotary Type
Prices from
Amazon
Circuit Breaker three-phase magnétothermique pkzm0 adjustable 2.5 to 4 moëller Eaton. Screw terminals, adjustment range: 2.5 to 4 A. interruption power 50 KA/415 V. sensitivity to the lack of phase trigger on short circuit protection set at 14 x IU. Receives the signal contacts front or side. Together disjoncteur-moteur switch DIL in coordination type 1, together disjoncteur-moteur limiter switch DIL in coordination type 2. Connection 2 x 6 mm² Max.
Read more
65.67
Description
Amazon
Circuit Breaker three-phase magnétothermique pkzm0 adjustable 2.5 to 4 moëller Eaton. Screw terminals, adjustment range: 2.5 to 4 A. interruption power 50 KA/415 V. sensitivity to the lack of phase trigger on short circuit protection set at 14 x IU. Receives the signal contacts front or side. Together disjoncteur-moteur switch DIL in coordination type 1, together disjoncteur-moteur limiter switch DIL in coordination type 2. Connection 2 x 6 mm² Max.
Description
(2)
Amazon
Circuit Breaker three-phase magnétothermique pkzm0 adjustable 2.5 to 4 moëller Eaton. Screw terminals, adjustment range: 2.5 to 4 A. interruption power 50 KA/415 V. sensitivity to the lack of phase trigger on short circuit protection set at 14 x IU. Receives the signal contacts front or side. Together disjoncteur-moteur switch DIL in coordination type 1, together disjoncteur-moteur limiter switch DIL in coordination type 2. Connection 2 x 6 mm² Max.
ManoManoEaton: PKZM0-4 MPCB 2.5-4A Rotary Type Rotary type Operated MPN: PKZM0-4 EAN: 4015080727378 PKZM0-4 MPCB 2.5-4A Rotary Type Attributes: Current Range: 2.5-4A MFR Part No.: 72737 Overall Depth: 76mm Overall Height: 93mm Overall Width: 45mm Supply Voltage: 690V
Product specifications
