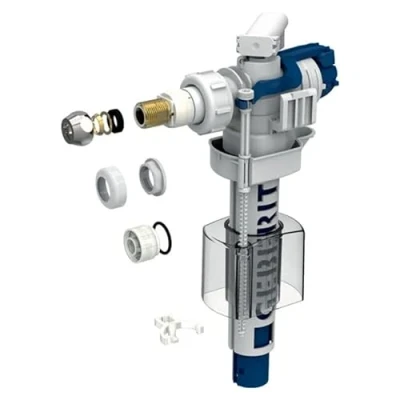

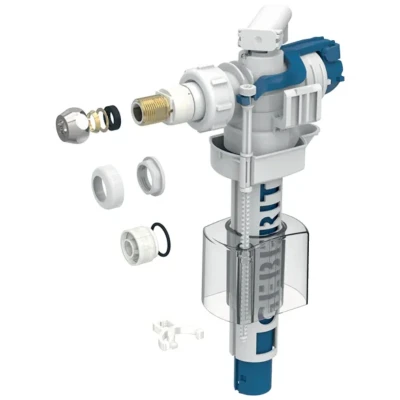

Geberit 244.510.00.1 Type 380 AG 3/8 in BSP Side Inlet Cistern Float Valve

Geberit fill valve 380AG with lateral 3/8" water supply connection and brass nipple. The valve features an adjustable filling height and a free outlet with overflow backflow prevention (AG). Designed for Geberit AquaClean Mera complete floor-standing toilets and suitable for installation in exposed or ceramic cisterns with a lateral water supply. Compatible with potable water and, when used with a filter system, suitable for greywater (rainwater). It meets BS 1212-4:2016 and WRAS standards. The 3/8" brass union connection is available, with a 390 mm braided hose offered separately. The valve is CE certified and built with a durable blend of ceramic and plastic for longevity.

This filling valve is compact in size to fit small spaces and designed for simple installation with BSPT connections. It can be used in cistern layouts where a smooth, reliable fill is required and includes features to prevent overflow and water wastage.

Dimensions and compatibility: compact design (16 cm W x 25.5 cm L x 6.5 cm H), suitable for ceramic cisterns and exposed cisterns, for clean drinking water and filtered greywater systems.

Features

• Type 380 fill valve for cisterns
• Lateral 3/8" water supply connection
• Adjustable filling height via spindle
• Backflow prevention AG
• Suitable for ceramic and exposed cisterns
• CE certified

Usage

1. Set filling height by turning the spindle.
2. Install using BSPT connections for simple, secure installation.
3. The valve opens after the water level drops by 20 mm.
