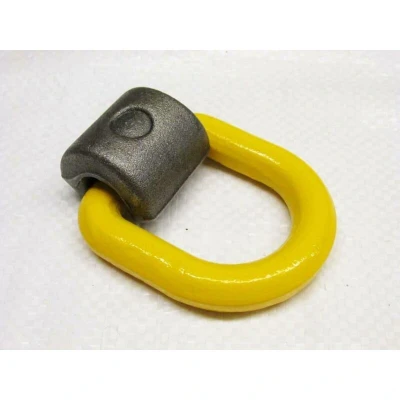

Grade 80 8 Ton Weld On Lifting Lashing Point with Spring (Eye Deck Plate G80)

ManoMano

Weld On Lifting Point Safe Working Load - 8 Ton (Subject To The Correct Welding Procedure) Material - Grade 80 Finish - Yellow (May Vary) Factor Of Safety - 4:1 Conforms To: BS EN 1677 Product Code SWL (Tonne) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) SFYASWLP1 1 28.5 35 40 38 13 77.5 SFYASWLP2 2 40 40 41 40 13 80 SFYASWLP3 3 33 42 44 47 17 93.5 SFYASWLP5 5 45 50 54 55 20.5 117 SFYASWLP8 8 67.5 66 69 66.5 26 140 SFYASWLP15 15 66 88.5 94.5 82 34 191 These Are A High Quality Piece Of Lifting Gear. These Are Mainly Used In The Lifting Gear Industry As A Lifting Point. These Lifting Points Are Welded On Where A Permanent Lifting Point Is Needed. This Particular Lifting Point Has A Spring To Keep It Rigid And In A Suitable Positon Whilst Not Under Load. Always Ensure Welding Is Carried Out By A Qualified Person. As General Rules; Always Preheat, No Tack Welding Or Short Thin Runs. *Test Certificate Will Be Supplied Via Email* *Please Note We Supply A Huge Variety Of Lifting Gear* ***FREE

Amazon

Perfect for the marine industy and other lifting applications. Material - Grade 80 Finish - Yellow (May Vary) Safe Working Load - 8 Ton A - 67.5MM B - 66MM C - 69MM D - 66.5MM E - 26MM F - 140MM
