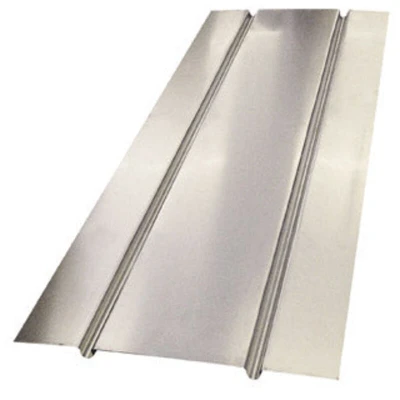

John Guest Speedfit 1 Spreader Plate 390mm x 1000mm Silver

ManoMano

JG Underfloor Spreader Plates (From Above) is an underfloor heating (UFH) pipe fixing system designed for use with timber suspended or floating floors, where a low height build up is required. 15mm pipe is installed into single or double grooved aluminium spreader plates that transmit heat evenly across the floor. insulation is placed in the void below the plates to minimise downward heat loss. Ideal for new builds, extensions and renovations, especially first floor levels. For existing floor structures install between battens and for new floors, fix between existing joists. If the floor can be raised, floors can also be counter-battened to make installation even easier. Timber floor pipe fixing system Aluminium heat diffusion plates Options for traditional or composite joists Low height build up Medium heat output and response Ideal for all room sizes, single or multi room Suitable for underfloor heating applications only

Plumbing Superstore

John Guest Speedfit Spreader Plates are available in various sizes. The 390mm x 1,000mm and 390mm x 250mm plates are used with traditional joists and secured using a hand stapler. The 165mm x 1,000mm plates are specifically for composite joists and are fixed from below. Speedfit Pipes fit snugly into the grooves of these plates. Insulation is added below the plates to minimize downward heat loss. These plates effectively secure Speedfit pipes, ensuring reliable performance. The John Guest Speedfit Spreader Plate in 390mm x 1,000mm ensures efficient heating and reduced energy waste.. John Guest Speedfit 1 Spreader Plate - 390mm x 1000mm Silver
