Moore & Wright 902M Internal Micrometer 50 210mm MAW902M

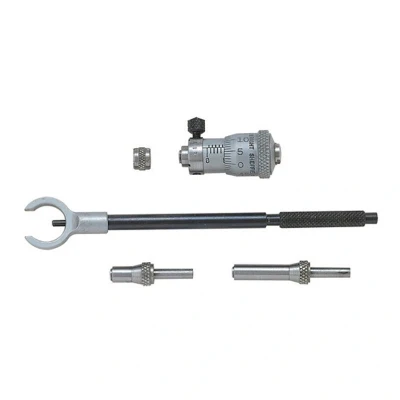

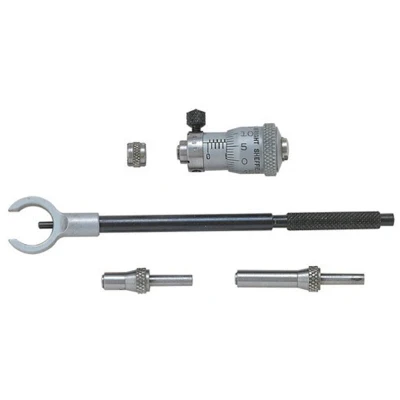

General description The Moore & Wright 902M Internal Micrometer is designed for precise internal measurements with a range of 50 to 210mm. It features a measuring head, extension rods, and a spacing collar to accommodate different measurement ranges. The micrometer has detachable extension handles for ease of use and is supplied in a fitted case. Technical specifications Measurement Range: 50-210mm Head Range: 10mm Graduation: 0.01mm Measurement System: Metric Includes: Fitted case Compatibility and accessories Compatible with extension rods and spacing collars for different measurement ranges Detachable extension handles for versatile use Installation Attach the appropriate extension rods and spacing collar to the measuring head Ensure the micrometer is properly calibrated before use Usage Insert the micrometer into the internal space to be measured Adjust the extension and collar to fit the measurement Read the measurement value from the graduated scale Other information Complies
