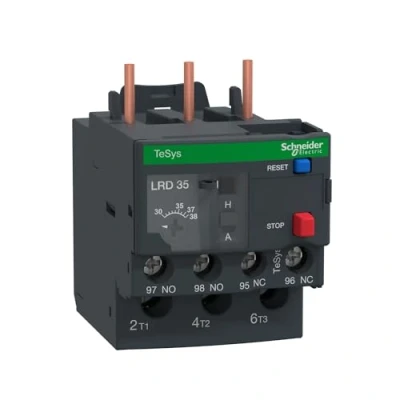

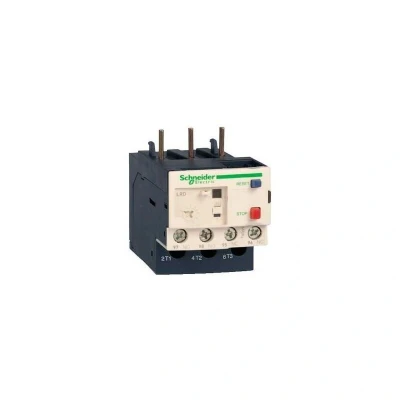

Schneider Electric, TeSys D, LRD35, LRD thermal overload relays 30...38 A class 10A
Featured
|
£ 86.53 |
To Shop
|
|
£ 96.52 |
To Shop
|
|
£ 96.52 |
To Shop
|
Description
ManoMano
General description The Schneider LRD35 is a TeSys motor thermal protection relay designed to provide reliable motor protection in various applications. It operates within a current range of 30 to 38 A and is classified as a class 10A relay, ensuring optimal performance for motor overload protection. Technical specifications Product Type: Differential Thermal Overload Relay Current Range: 30 to 38 A Network type: AC / DC Tightening torque: Remote control: 1.7 Nm on screw-clamp terminals; Power circuit: 2.5 Nm on screw-clamp terminals Height: 70 mm Width: 45 mm Depth: 70 mm Product mass: 0.124 kg Compatibility and accessories Compatible with: LC1D32 / LC1D38
Description
(3)
General description The Schneider LRD35 is a TeSys motor thermal protection relay designed to provide reliable motor protection in various applications. It operates within a current range of 30 to 38 A and is classified as a class 10A relay, ensuring optimal performance for motor overload protection. Technical specifications Product Type: Differential Thermal Overload Relay Current Range: 30 to 38 A Network type: AC / DC Tightening torque: Remote control: 1.7 Nm on screw-clamp terminals; Power circuit: 2.5 Nm on screw-clamp terminals Height: 70 mm Width: 45 mm Depth: 70 mm Product mass: 0.124 kg Compatibility and accessories Compatible with: LC1D32 / LC1D38
AmazonTesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads. Digital customer experience for technical documents Multiple international certifications Pre-mounted on a baseplate with busbar interconnection for quick, simple installation
Radwell UKBIMETALLIC, OVERLOAD RELAY, IEC, 38 AMP, 600 V
Product specifications
| Brand | Telemecanique |
|---|---|
| EAN |
|
| Color |
|
| Size |
|
| MPN |
|
