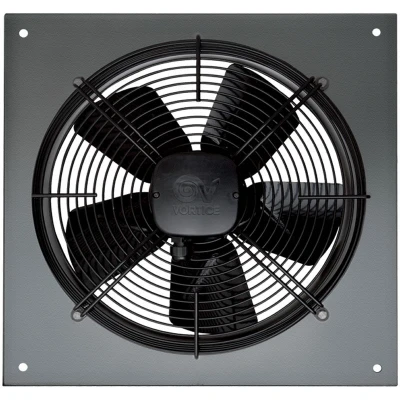

Wall fan a e / t Series 400 v, 785 to 9502 m3/h, IP54

General description The Wall Fan A-E / T Series is designed for efficient air circulation in commercial and industrial environments. With a powerful airflow ranging from 785 to 9502 m³/h, this fan is suitable for various applications, including hospitals, warehouses, factories, clubs, offices, restaurants, and gyms. It features a robust construction with a weather-proof epoxy coating, ensuring durability and reliability. Technical specifications Voltage: 400 Volt / 50 Hertz, three-phase Protection code: IP54 (splash-proof) Material: Cold-rolled phosphated steel housing with grey hammered finish Impeller: Optimized, dynamically balanced, made of pressed steel with polyester powder coating Blades: 4 blades (models Ø 400, 450, 560), 5 blades (models Ø 250, 300), 7 blades (model Ø 500) Motor: Enclosed three-phased asynchronous motor with thermal overload protection Maximum ambient temperature: -30°C to 50°C Noise level: Low-noise operation Control: Rotation speed can be regulated with
