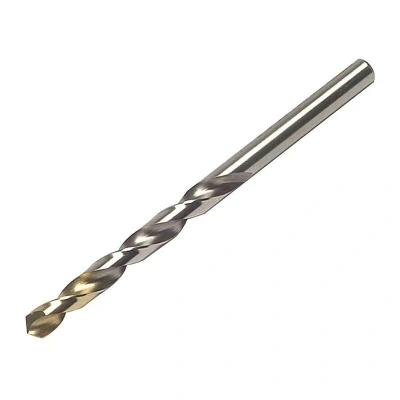

Dormer A002 9/64" HSS Straight Shank Jobber Drills TiN Tipped

General description The Dormer A002 HSS TiN Coated Jobber Drill is designed for precise and efficient drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. It features a TiN tip coating that enhances tool life and performance, along with a self-centering split point for superior hole quality and positional accuracy. This drill bit is suitable for both hand and machine use, making it versatile for various drilling tasks. Technical specifications Material: High-Speed Steel (HSS) with TiN coating Diameter: 9/64 in (2.0 mm) Overall length: 70 mm Working length: 39 mm Tip angle: 118° Cutting direction: Right Flute length: 39 mm Number of flutes: 2 Standards: DIN 338, BS 328, ISO 235 Nominal tolerance: h8 Web thickness: Strengthened Compatibility and accessories Compatible with standard drill chucks for hand and machine drilling Installation Insert the drill bit into a compatible drill chuck, ensuring it is securely tightened Use appropriate
