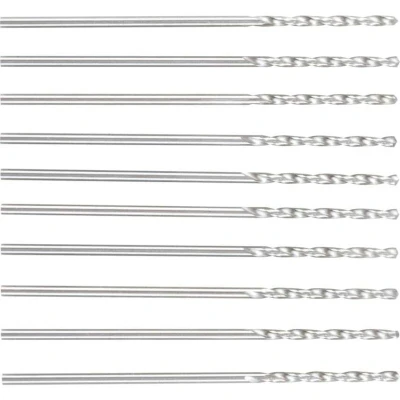

Dormer A002 5.60MM HSS Straight Shank Jobber Drills TiN Tipped

Power Tools Direct

Dormer A0025.6 Hss Tin Jobber Drill 5.60Mm 10Pk Description: The Dormer A0025.6 Is A 5.60Mm Jobber-Length Drill Manufactured From High-Speed Steel With A Tin Tip Coating. Produced To Din 338 Standards It Features A 118 Modified Split Point Straight Shank And Standard Spiral Flute Design. With A 4Xd Usable Depth-To-Diameter Ratio The Drill Is Designed For Drilling Steel Without Pecking And Is Suitable For Right-Hand Cutting Applications. Specifications: Drill Diameter: 5.60Mm Overall Length: 93Mm Flute Length: 57Mm Material: High-Speed Steel Coating: Bright With Tin Tip Coating Standard: Din 338 Drill Point Angle: 118 Drill Point Type: Modified Split Point Shank Type: Cylindrical / Straight Shank Flute Type: Standard Spiral Flute Rotation: Right Hand Usable Depth-To-Diameter Ratio: 4Xd Diameter Tolerance: H8 Pack Quantity: 10 Drills Features: High-Speed Steel Construction Tin Tip Coating Manufactured To Din 338 Standard 118 Modified Split Point Designed For 4Xd Drilling Without Pecking In Steel Straight Cylindrical Shank Standard Spiral Flute Geometry Right-Hand Cutting Design H8 Diameter Tolerance Suitable For Steel And Cast Steel Suitable For Stainless Steel Suitable For Cast Iron Suitable For Non-Ferrous Metals Suitable For High-Temperature Alloys See `More Information` below for sizing and Colour detailsPTDTSADIRDORA0025610

ManoMano

General description The Dormer A002 5.60MM HSS Straight Shank Jobber Drill features a durable TiN (Titanium Nitride) coating that enhances tool life and performance. With a 118° self-centering split point, it ensures superb hole quality and positional accuracy, making it ideal for drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. Technical specifications Material: High-Speed Steel (HSS) Coating: TiN (Titanium Nitride) Diameter: 5.60mm Overall Length: 93mm Flute Length: 57mm Number of Flutes: 2 Point Angle: 118° Shank Diameter Tolerance: f11 Nominal Diameter Tolerance: h8 Standards: DIN 338, BS 328 Series: A002 Web Thickness: Strengthened Compatibility and accessories Compatible with standard drill chucks and holders Suitable for use with drill presses, hand drills, and machining centers Can be used with external coolant delivery systems Installation Insert the drill into a compatible drill chuck or holder Ensure the shank is

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree split point provides self centering, low thrust and easier penetration TiN Coated Tip increases surface hardness, wear resistance and improves tool life Improved hole accuracy and surface finish For use on machines or hand held applications
