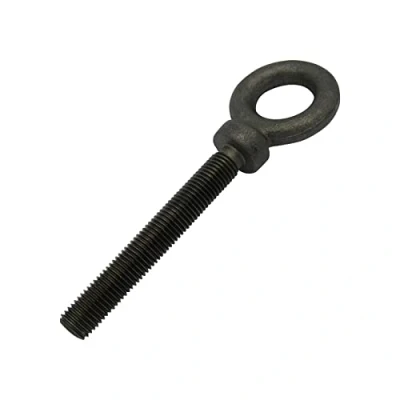

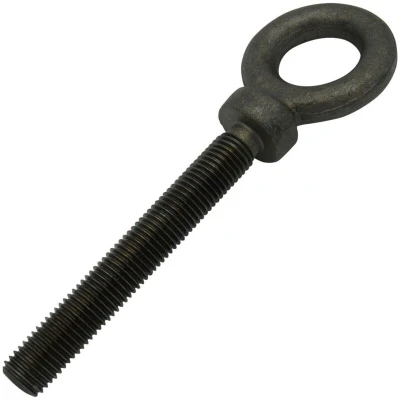

M10 Long Shank Dynamo Eye Bolt Self Colour

ManoMano

Specifications: Product Code: SFMDEL10 Product Weight: 0.13kg 10MM Long Shank Dynamo Eyebolt Thread DIA - 10MM Finish - Self Colour CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) PITCH SFMDEL06 0.06 20 45.5 22 6 8.5 24.5 10 105 1.00 SFMDEL08 0.095 20 42 22 8 7.5 25 11 105 1.25 SFMDEL10 0.25 20 41.5 22 10 6.5 26 10 105 1.50 SFMDEL10ZP30 0.25 19.5 42 21.5 10 9 26 10 30 1.50 SFMDEL10ZP 0.25 19.5 42 21 10 8 27 10 99 1.50 SFMDEL12 0.32 25 49 27 12 13 37 11 103 1.75 SFMDEL12ZP 0.32 26 50.5 28 12 9.5 35.5 11 100 1.75 SFMDEL16 0.63 29 57 30 16 15 42 14 112 2.00 SFMDEL16ZP 0.63 27.5 57 30 16 10 40.5 13 113 2.00 SFMDEL20 1.25 36 73 40 20 15 56 17 128 2.50 SFMDEL20ZP 1.25 37.5 74 38.5 20 13 53 17 130 2.50 SFMDEL24 2 41 89 49.5 24 14 65 18.5 126 3.00 These eyebolts are excellent for numerous applications. These are hugely popular within the lifting industry as they are tested and certified for lifting. These eyebolts feature a long shank for applications where a longer

Amazon

SWL - 0.25 Ton A=20MM, B=41.5MM, C=22MM D=10MM, E=6.5MM, F=26MM G=10MM, H=105MM Pitch = 1.50MM, Manufacturer: SecureFix Direct
