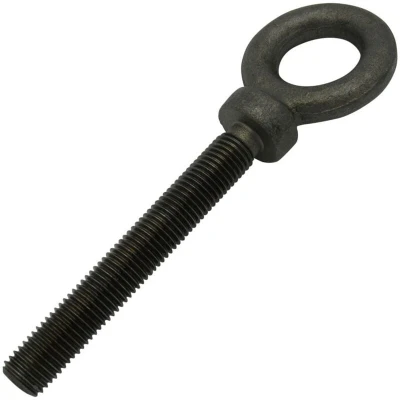

M8 Long Shank Dynamo Eye Bolt Self Colour

ManoMano

Specifications: Product Code: SFMDEL08 Product Weight: 0.1kg 8MM Long Shank Dynamo Eyebolt Thread DIA - 8MM Finish - Self Colour CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) PITCH SFMDEL06 0.06 20 45.5 22 6 8.5 24.5 10 105 1.00 SFMDEL08 0.095 20 42 22 8 7.5 25 11 105 1.25 SFMDEL10 0.25 20 41.5 22 10 6.5 26 10 105 1.50 SFMDEL10ZP30 0.25 19.5 42 21.5 10 9 26 10 30 1.50 SFMDEL10ZP 0.25 19.5 42 21 10 8 27 10 99 1.50 SFMDEL12 0.32 25 49 27 12 13 37 11 103 1.75 SFMDEL12ZP 0.32 26 50.5 28 12 9.5 35.5 11 100 1.75 SFMDEL16 0.63 29 57 30 16 15 42 14 112 2.00 SFMDEL16ZP 0.63 27.5 57 30 16 10 40.5 13 113 2.00 SFMDEL20 1.25 36 73 40 20 15 56 17 128 2.50 SFMDEL20ZP 1.25 37.5 74 38.5 20 13 53 17 130 2.50 SFMDEL24 2 41 89 49.5 24 14 65 18.5 126 3.00 These eyebolts are excellent for numerous applications. These are hugely popular within the lifting industry as they are tested and certified for lifting. These eyebolts feature a long shank for applications where a longer thread

Amazon

SWL - 0.095 Ton A=19MM, B=41.5MM, C=22MM D=8MM, E=6MM, F=25.5MM G=10MM, H=105MM Pitch = 1.25MM, Manufacturer: SecureFix Direct
