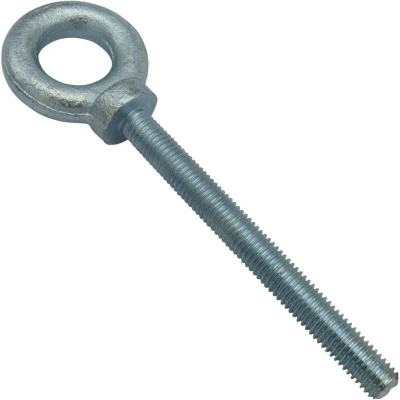

M12 Long Shank Dynamo Eye Bolt Zinc Plated

Specifications: Product Code: SFMDEL12ZP Product Weight: 0.124kg Long Shank Dynamo Eyebolt Thread DIA - 12MM Finish - Zinc Plated CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) PITCH SFMDEL06 0.06 20 45.5 22 6 8.5 24.5 10 105 1.00 SFMDEL08 0.095 20 42 22 8 7.5 25 11 105 1.25 SFMDEL10 0.25 20 41.5 22 10 6.5 26 10 105 1.50 SFMDEL10ZP30 0.25 19.5 42 21.5 10 9 26 10 30 1.50 SFMDEL10ZP 0.25 19.5 42 21 10 8 27 10 99 1.50 SFMDEL12 0.32 25 49 27 12 13 37 11 103 1.75 SFMDEL12ZP 0.32 26 50.5 28 12 9.5 35.5 11 100 1.75 SFMDEL16 0.63 29 57 30 16 15 42 14 112 2.00 SFMDEL16ZP 0.63 27.5 57 30 16 10 40.5 13 113 2.00 SFMDEL20 1.25 36 73 40 20 15 56 17 128 2.50 SFMDEL20ZP 1.25 37.5 74 38.5 20 13 53 17 130 2.50 SFMDEL24 2 41 89 49.5 24 14 65 18.5 126 3.00 These eyebolts are excellent for numerous applications. These are hugely popular within the lifting industry as they are tested and certified for lifting. These eyebolts feature a long shank for applications where a longer
