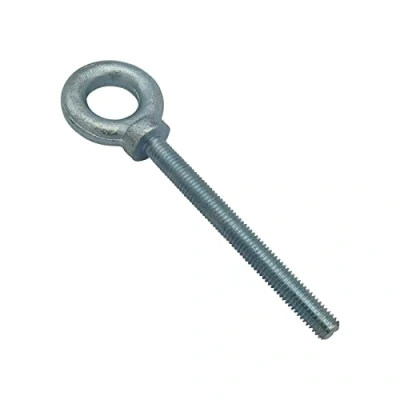

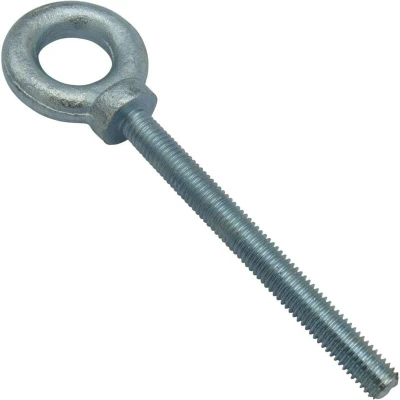

M10 Long Shank Dynamo Eye Bolt Zinc Plated

ManoMano

Specifications: Product Code: SFMDEL10ZP Product Weight: 0.1kg Zinc Plated Dynamo Long Shank Eyebolt Thread DIA - 10MM Finish - Zinc Plated CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) PITCH SFMDEL06 0.06 20 45.5 22 6 8.5 24.5 10 105 1.00 SFMDEL08 0.095 20 42 22 8 7.5 25 11 105 1.25 SFMDEL10 0.25 20 41.5 22 10 6.5 26 10 105 1.50 SFMDEL10ZP30 0.25 19.5 42 21.5 10 9 26 10 30 1.50 SFMDEL10ZP 0.25 19.5 42 21 10 8 27 10 99 1.50 SFMDEL12 0.32 25 49 27 12 13 37 11 103 1.75 SFMDEL12ZP 0.32 26 50.5 28 12 9.5 35.5 11 100 1.75 SFMDEL16 0.63 29 57 30 16 15 42 14 112 2.00 SFMDEL16ZP 0.63 27.5 57 30 16 10 40.5 13 113 2.00 SFMDEL20 1.25 36 73 40 20 15 56 17 128 2.50 SFMDEL20ZP 1.25 37.5 74 38.5 20 13 53 17 130 2.50 SFMDEL24 2 41 89 49.5 24 14 65 18.5 126 3.00 These eyebolts are excellent for numerous applications. These are hugely popular within the lifting industry as they are tested and certified for lifting. These eyebolts feature a long shank for applications where a

Amazon

SWL - 0.25 Ton A=19.5MM, B=42MM, C=21MM D=10MM, E=8MM, F=27MM G=10MM, H=99MM Pitch = 1.50MM, Manufacturer: SecureFix Direct
