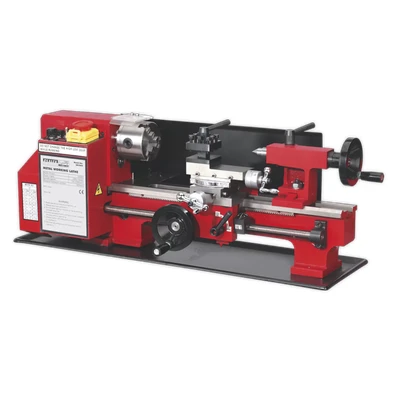

Sealey Metalworking Lathe 300mm Between Centres

Precision built, the metalworking lathe is an essential addition to any small workshop, designed for professionals, home engineers, and model makers alike. This versatile and compact unit, powered by a robust 300W motor, offers a range of features that enhance both performance and ease of use.

Motor and Drive System

The lathe operates with a variable speed reversible drive, allowing users to fine-tune the spindle speed according to specific project requirements. The spindle speed range spans from 100 to 2500 RPM, providing flexibility for various applications. Additionally, the lathe is equipped with a powered cutting facility that supports both right and left-hand threads, making it ideal for a wide array of machining tasks.

Key Features

This lathe comes fully equipped with essential components that improve efficiency and safety:

- Self-Centring 3-Jaw Chuck: Ensures secure gripping of workpieces, enhancing precision during operation.

- 4-Way Tool Post: Allows for quick tool changes and adjustments, increasing overall productivity.

- Swarf Tray and Rear Splash Guard: Helps maintain a clean working environment by collecting debris and protecting the workspace from cutting fluids or swarf.

- Emergency Stop Button and Chuck Guard: Prioritises user safety by providing immediate halt functionality in emergencies.

Specifications

The lathe boasts a considerable capacity with 300mm distance between centres, accommodating a maximum workpiece diameter of Ø180mm. It features a spindle bore of Ø20mm, along with a spindle taper classified as MT3 and a tailstock taper of MT2. The lead screw is metric, enabling precise measurements for professional-level projects.

Dimensions and Weight

Designed for the compact workshop, the lathe measures 300 x 300 x 830mm, with a net weight of 40kg, striking a perfect balance between portability and durability. This model, specified as Model No. SM3002, provides robust performance without taking up excessive space.

Optional Accessories

For those needing additional support, an optional stand is available, identified by Model No. SM3002ST. This stand elevates the lathe to a more comfortable working height, catering to a wide range of user preferences and workshop layouts.

Offering a 1-year warranty, this precision-built metalworking lathe is not just a tool; it’s an investment in quality craftsmanship. Its combination of power, precision, and safety features make it an indispensable asset for anyone serious about metalworking.
