Description

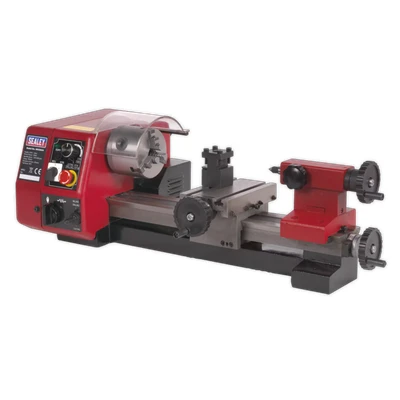

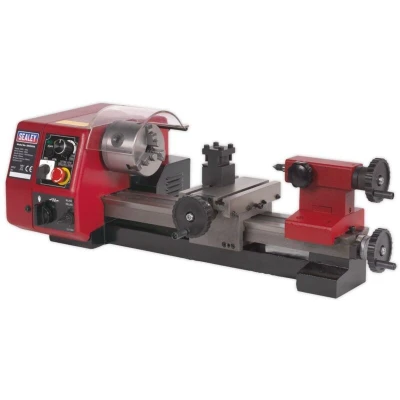

The bench mounting miniature lathe is the perfect addition to any workshop, especially for those who require a compact and portable solution. Designed for versatility, this lathe is small enough to fit snugly in the corner of your workspace, while still providing excellent performance and functionality.
Constructed primarily from high-quality cast iron and steel, this lathe is built to withstand the demands of frequent use. It is equipped with a powerful 150W high torque motor, ensuring reliable operation for various machining tasks. With a swing over the bed of 150mm and a distance between centres of 250mm, this miniature lathe is capable of handling a wide range of projects, from intricate detailing to larger components.
One of the standout features of this lathe is its variable speed control, which allows users to adjust the spindle speed between 100 and 2000 RPM. This flexibility is essential for achieving optimal results with different materials and applications. Whether you require a slow, deliberate pace for precision work or a faster speed for heavier cutting, the miniature lathe can accommodate your needs.
Additionally, the lathe offers both manual and powered lead screw feed options, allowing for smooth operation and precise adjustments. The inclusion of overload protection provides peace of mind to users, safeguarding the motor from potential damage during operation.
When purchased, the lathe comes supplied with an 80mm 3-jaw self-centring chuck and a tailstock centre, along with essential service tools that enable users to get started immediately. The design also allows for easy upgrading; an optional mill/drill head can be ordered as Model No. SM2503B, expanding the functionality of the lathe for more complex tasks.
In terms of specifications, the lathe weighs 26.2 kg and dimensions measure 345mm in length and 310mm in height. The cross slide travel is 50mm, and it accommodates a spindle hole taper of MT2, while the tailstock taper is MT1. Additionally, the lathe offers a range of metric threads with 5 pitches from 0.5 to 1.25 mm, making it a versatile tool for various applications.
This miniature lathe is an exceptional choice for hobbyists, educators, and professional craftsmen alike, combining portability, durability, and functionality in a compact design. With an extensive range of accessories available, users can further enhance their machining capabilities and tackle an even wider array of projects.
