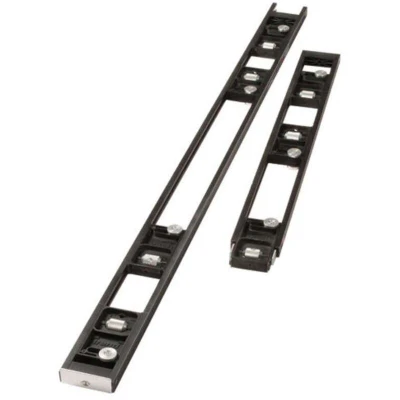

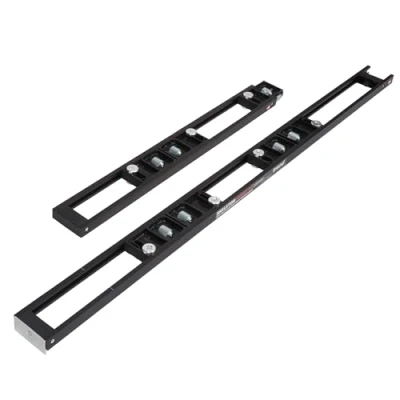

Trend Two Part Skeleton Hinge Jig with Adjustable Blocks, Robust Carry Case & Guide Bush for Recess Cutting, Black, H/JIG/C

Amazon

EFFICIENT AND FAST: Built-in guide bush offsets on each hinge block, along with the indexed back set discs, ensure superfast setup and maximum efficiency; An additional 12mm diameter long-reach cutter such as the Trend C019AX1 4TC is required VERSATILE USES: Internal or external doors; Frames and linings with rebates or fitted stops up to 25mm thick; The indexing back set positions cover standard 20mm, 25mm and 30mm hinge leaf widths; Easily adjusted for other hinge leaves PRECISION ACCURACY: Hinge positions are replicated with pinpoint precision on the door and frame from a single set up for increased productivity on site, or in the workshop for pre-hung door and frame work CONVENIENT FOR ANY WORKPLACE: Supplied in a robust carrycase with a 16mm guide bush and securing bradawls, a light duty router such as the Trend T5 is ideal for making the cuts; Ideal for fire work INCLUDED: H JIG C; 3 x Hinge sliding aperture block assemblies; 4 x Bradawls (short blade); 1 x 16mm guide bush; 1 x Carry case, Weight: 8.267334825 Pounds, Manufacturer: Trend

ManoMano

General description The Trend H/JIG/C Hinge Jig Skeleton is a two-part adjustable portable template set designed for recessing hinges in wooden doors and frames using a router. It is easy to use with minimal setup time, allowing for accurate and quick completion of jobs. This jig is ideal for on-site use and in joinery shops, enhancing productivity with excellent results. It features fully adjustable apertures suitable for fire door requirements and renovation work, making it perfect for fitting a new door into an old frame. Technical specifications Hinge sizes possible: Minimum length: 67 mm (2.5/8 in), Maximum length: 127 mm (5 in) Minimum width: 12.7 mm (1/2 in), Maximum width: 35 mm (1.3/8 in) Door sizes possible: Minimum height: 1956 mm (6 ft 5 in), Maximum height: 2100 mm (6 ft 10 in) Minimum thickness: 16 mm (5/8 in), Maximum thickness: 51 mm (2 in) Weight: 2.9 kg Overall length: 1956 mm Preset hinge sizes: 20 mm, 25 mm, and 30 mm Compatibility and accessories Suitable for
