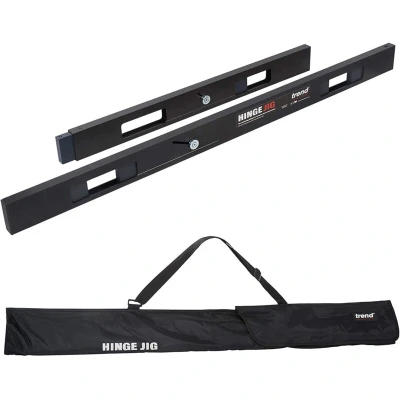

Trend Two Part Hinge Jig In Case

ManoMano

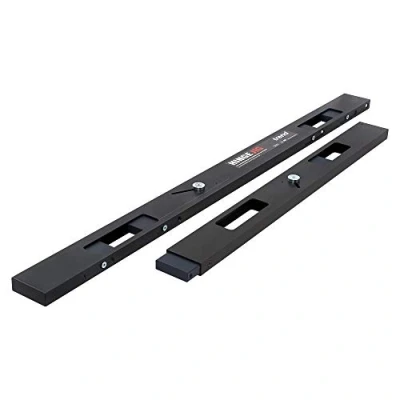

General description A 2-part hinge jig, portable template set designed for recessing hinges in wooden doors and frames. It is easy to use with minimal setup time, completing the job both accurately and quickly. This jig is used on-site and in joinery shops to increase productivity with excellent results. It features four apertures for fire door requirements and eliminates the need for conventional marking out. Quick and simple to set up, the hinge serves as the pattern, ensuring clean and accurate recesses every time. Technical specifications Hinge sizes possible: Length min: 2 5/8 in (67 mm) Length max: 5 in (127 mm) Width min: 3/8 in (9.5 mm) Width max: 1 3/8 in (35 mm) Door sizes possible: Height min: 6 ft 5 in (1955 mm) Height max: 6 ft 10 in (2100 mm) Thickness min: 5/8 in (16 mm) Router compatibility: Light-duty router with 1/4 inch collet Required router cutter: Long reach, 12 mm diameter with 70 mm overall length Patent No.: GB2285410 Compatibility and accessories Suitable for

Amazon Marketplace

QUICK AND ACCURATE: Portable two-piece template jig for creating precise hinge recesses in wooden doors and frames with minimal setup time. FIRE DOOR COMPLIANCE: Includes four apertures designed for fire door hinge requirements, ensuring compliance with safety standards. VERSATILE APPLICATION: Suitable for timber doors, square butt hinges, rebated frames, and stops up to 25 mm thick for both interior and exterior doors. COMPATIBLE WITH PLUNGE ROUTERS: Designed for use with light-duty plunge routers with a 1/4-inch collet; requires a 12 mm diameter, 70 mm long router cutter. ENHANCED PRODUCTIVITY: Eliminates conventional marking-out, enabling clean and accurate recesses on-site or in joinery workshops., Weight: 4.1 Pounds, Manufacturer: Trend
