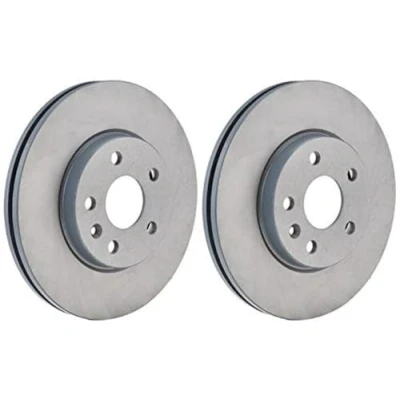

013502824 Brake disc BLUE PRINT ADG043168 Front Axle 276mm 26mm 5 Hole 105mm internally vented Coated VAUXHALL: Astra Mk6, Mk6 GTC

Amazon

Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 26 mm; No. of Wheel Bolt/Stud Holes: 5; No. of Fixing Holes: 1; Height or Thickness: 45,5 mm; Outer Diameter: 276 mm; Pitch Circle Diameter: 105 mm; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: front axle; Minimum Thickness of Brake Disc: 24 mm; Weight: 6,730 kg; Centering Diameter: 60 mm OE numbers (for comparison purposes only): Chevrolet (GM) 13502045; Opel 0569 073; Vauxhall 13502044; OEM numbers (for comparison purposes only): Textar 92198903, Jakoparts J3300901, Bosch 0 986 479 643, Delphi BG4191, TRW DF7475, Nipparts N3300916 among others suitable for: Opel: Astra GTC J, Astra H, Astra J; Vauxhall: Astra V, Astra VI; Chevrolet: Aveo, Cruze

AUTODOC

ADG043168; Brake disc; BLUE PRINT; Front Axle 276mm 26mm 5-Hole 105mm internally vented; for VAUXHALL, OPEL, CHEVROLET; 13502045, 13502044, 13502824, 013502044, 013502045, 00569069, 00569073, 0569069, 0569073, 569069, 569073, 013502824

Zoro Tools

BRAKE DISC (FR PAIR) ADG043168 - Pack of 2
