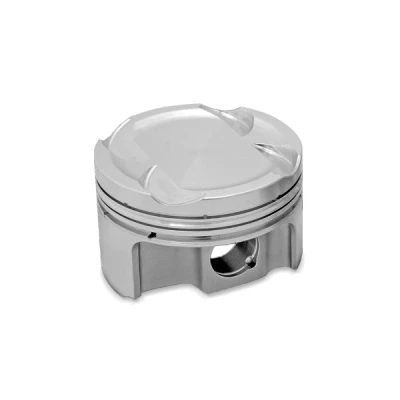

03L107065AB, 03L107065AG, 03L107065S Piston NÜRAL 87 432300 10 AUDI: A3 Hatchback, A4 B8 Saloon, Sportback, VOLKSWAGEN: GOLF 6, Eos, Scirocco III

Amazon

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 08-432300-10 Compression Height [mm]: 45.800 Cylinder Bore [mm]: 81.00 Length [mm]: 68.800 Machined: with cut-out for oil jet Production Number: 07901G220 Recess Depth 1 [mm]: 13.100 Recess Diameter [mm]: 50.880

AUTODOC

87-432300-10; Piston; NÜRAL; 81mm with bush for piston pin boss, with cooling duct, with piston ring carrier, for keystone connecting rod; for VOLKSWAGEN, AUDI, SKODA, SEAT, VW; 03L107101S, 03L107065AB, 03L107065AG, 03L107065S
