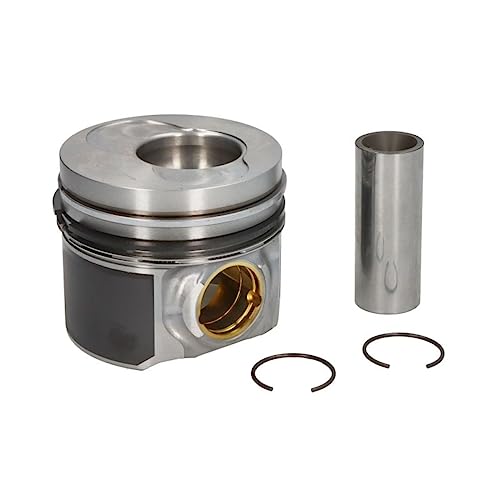

070107065AM, 070107103AM piston MAHLE ORIGINAL 028 20 00 81,0mm for cylinder 1 2 with ring carrier, cooling duct VOLKSWAGEN: Transporter 5

TECHNICAL INFORMATION: Cylinder Bore [mm] - 81,0; Length [mm] - 69,8; Compression Height [mm] - 45,75; Bolt Length [mm] - 66,0; Bolt Head Diameter [mm] - 26,0; Recess Depth 1 [mm] - 17,6; Recess Diameter [mm] - 37,9; Valve Pocket Depth 1 [mm] - 0,8; Machined - with cut-out for oil jet; Surface - Coated; Supplementary Article / Supplementary Info Info 2 - with piston ring carrier, with cooling duct; Top Land Height [mm] - 9,5; Fitting Position - for cylinder 1-2; Connecting Rod Design - Trapezoidal Connecting Rod; Production Number - 81 L 103; Piston Clearance [mm] - 0,05; Component Number - 1. R2.5 IW CrK, 2. M 2.0 IFU P, 3. DSF 3.0 Cr FAST COMPATIBILITY CHECK IN JUST ONE BUSINESS DAY - Unsure if the car part fits? Simply send us the VIN code of your vehicle. Our expert team checks compatibility and gives you feedback within one business day! COMPATIBLE WITH: VW TRANSPORTER V (7HA,7HH,7EA,7EH,7HB,7HJ,7EB,7EJ,7EF,7EG,7HF,7EC,7JD,7JE,7JL,7JY,7JZ,7FD), MULTIVAN V (7HM,7HN,7HF,7EF,7EM,7EN), Touareg (7LA,7L6,7L7), CALIFORNIA (7EC,7EF,7EG,7HF) PRODUCT NUMBER: 070107065AM, 070107103AM CHECK FIT - Please verify that this replacement part is compatible with your vehicle using your vehicle data and note any existing restrictions/criteria.
