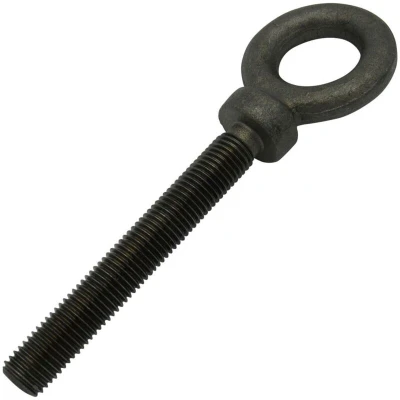

1' 2 Ton Self Colour Long Shank Dynamo Eyebolt 2000KG Imperial Eye Bolt

ManoMano

General description These Long Shank Dynamo Eyebolts are designed for various lifting applications, featuring a long shank for extended thread requirements and a larger eye diameter for accommodating bigger attachments. They are widely used in the lifting industry and are tested and certified for lifting purposes. It is essential that these eyebolts are used only for straight lifts and by competent individuals. Technical specifications Thread Diameter: 1" Finish: Self Colour Available Codes and Specifications: SFIDEL06: SWL 0.1 Ton, A 19 mm, B 42 mm, C 22 mm, D 6 mm, E 85 mm, F 25 mm, G 10 mm, H 103 mm, Pitch 20 SFIDEL08: SWL 0.15 Ton, A 19 mm, B 42 mm, C 22 mm, D 7.7 mm, E 8.5 mm, F 25 mm, G 10 mm, H 103 mm, Pitch 18 SFIDEL10: SWL 0.25 Ton, A 19 mm, B 42 mm, C 22 mm, D 9.3 mm, E 9 mm, F 25 mm, G 10 mm, H 103 mm, Pitch 16 SFIDEL12: SWL 0.5 Ton, A 24.5 mm, B 49 mm, C 29 mm, D 12.5 mm, E 11 mm, F 36 mm, G 11 mm, H 105 mm, Pitch 12 SFIDEL16: SWL 0.8 Ton, A 29.5 mm, B 58 mm, C 31.5 mm, D

Amazon

SWL = 2 Ton A - 40MM, B - 88MM, C - 49.5MM, D - 25MM E - 15.5MM, F - 67MM, G - 19MM, H - 130MM Pitch = 8 Finish - Self Colour
