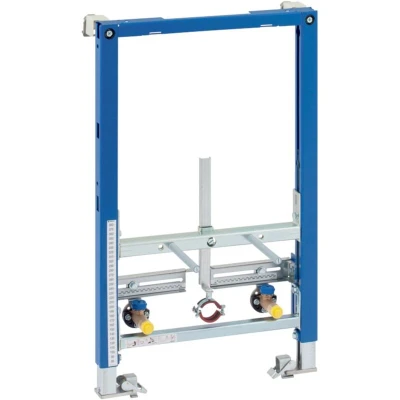

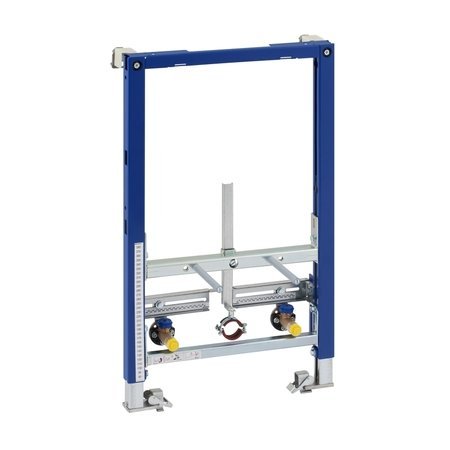

111.543.00.1 Duofix Bidet Frame 0.82m PreWall Including Brackets Geberit

General description Geberit 111.543.00.1 Duofix Bidet Frame is designed for the installation of a wall-hung bidet with bolt fixings set at 180 or 230 mm centres. It is suitable for mounting in front of solid or drywall constructions and can be used in a partial-height Duofix system wall. Technical specifications Height: 0.82 m Frame with holes: 9 mm for fastening in wood frame construction Leg supports: Galvanised, steplessly adjustable from 0 - 200 mm Self-supporting frame with C profile: 40/40 mm Powder-coated finish: Geberit blue Retractable leg supports: Up to -50 mm for floor structures Rotating foot plate: For installation in UW50 and UW75 profiles Water connections: 2 x R 1/2" Angle stop valves: 2 x R 1/2" Threaded rods: 2 x M12 for ceramics fastening Compatibility and accessories Includes: 2 Duofix prewall brackets for system Extension bolts for larger ducts: 111.887.00.1 Backplate elbows and chrome isolating valves with 3/8 BSP connection Installation Designed for
