1154228, 34511154228 Relay, main current HELLA 4RD 933 332 401 30A/40A 5 pin connector

Name: 1154228, 34511154228 Relay, main current HELLA 4RD 933 332 401 30A/40A 5 pin connector
Brand: HELLA
SKU: 5ca6846925ce9ad3afe81b8130f38b7f

1/1

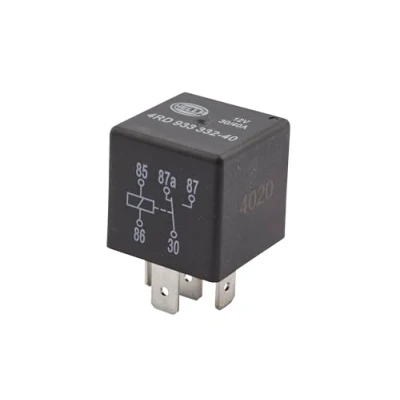

Image of 1154228, 34511154228 Relay, main current HELLA 4RD 933 332 401 30A/40A 5 pin connector

Amazon

Prices from

9.66

Featured

	£ 9.66	To Shop
	£ 9.72	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon Mini relay - change-over relay 12 V, without holder Rated switching current min. 20 A, max. 40 A Number of switching operations max. 100,000 Coil resistance: 85 Ohm Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A Temperature range from: -40°C - Temperature range to: 125°C Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A/40A

Compare webshops (2)

Shop

Price

£ 9.66

To Shop

£ 9.72

To Shop

Description (1)

Mini relay - change-over relay 12 V, without holder Rated switching current min. 20 A, max. 40 A Number of switching operations max. 100,000 Coil resistance: 85 Ohm Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A Temperature range from: -40°C - Temperature range to: 125°C Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A/40A
