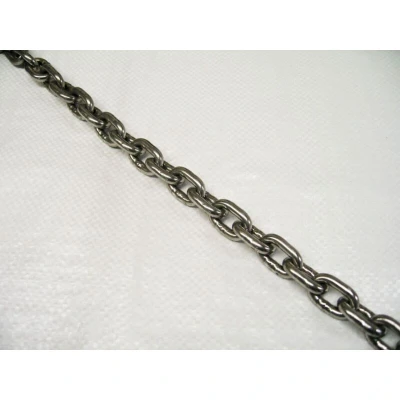

12MM Short Link Chain Stainless Steel DIN766 (Anchor 316 Grade)

ManoMano

General description This 12MM Short Link Chain is made from high-quality 316 Grade Stainless Steel and conforms to the DIN766 standard. It is versatile and suitable for a wide range of applications, particularly in the marine industry where it is commonly used with anchors. This chain is available for purchase by the meter, allowing you to order the exact length you need. Technical specifications Chain Diameter: 12MM Material: 316 Grade Stainless Steel Product Codes and Dimensions: SFSSSL04: A (3.8MM), B (13MM), C (24.2MM), D (5.3MM), E (16.7MM) SFSSSL05: A (4.8MM), B (17.3MM), C (28.2MM), D (7.6MM), E (18.4MM) SFSSSL06: A (5.8MM), B (18.9MM), C (30.8MM), D (7.2MM), E (19.1MM) SFSSSL08: A (7.7MM), B (25.2MM), C (39.1MM), D (9.7MM), E (24MM) SFSSSL10: A (9.7MM), B (31MM), C (48MM), D (11.6MM), E (29MM) SFSSSL12: A (11.5MM), B (39MM), C (59MM), D (15MM), E (35.7MM) SFSSSL16: A (15.7MM), B (51MM), C (79MM), D (19.7MM), E (44MM) SFSSSL20: A (19.5MM), B (67MM), C (98.5MM), D (26.5MM), E

Amazon

Material - 316 Marine Grade Stainless Steel Ideal for use within the marine industry Ideal for many applications 4MM - 26MM diameter See below for individual dimensions
