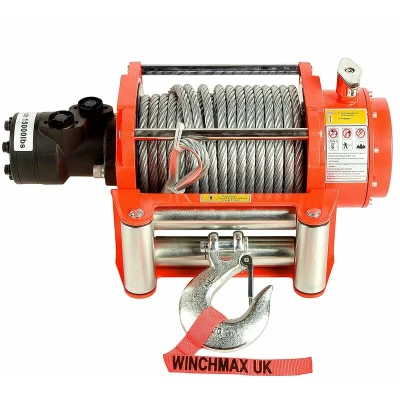

15,000lb (6,804kg) Original Orange Hydraulic Winch. 25m x 12 mm Steel Rope. 1/2 inch Clevis Hook.

General description 15,000lb (6,804kg) Original Orange Hydraulic Winch is designed for recovery trucks and trailers over 7.5T, as well as for industrial, commercial, and agricultural applications. This winch features a robust construction and high-performance capabilities, making it an ideal choice for heavy-duty tasks. Technical specifications Single Line Rated Pull: 15,000lb (6,804kg) Motor: Hydraulic Gear Train: 3 Stage Planetary Gear Reduction Ratio: 32:1 Clutch: Sliding Ring Gear Braking Action: Automatic Drum Size: Diameter 88mm, Length 222mm Drum Finish: Black, painted Cable: 25m x 12mm dia Steel Wire Rope Hook: Clevis hook 1/2 inch, zinc plated Fairlead: 4 Roller Fairlead Flow: 50-60 l/min Pressure: 10.8Mpa (108 Bar) Pressure Hose Connections: 18mm/1.5mm Winch Finish: Original Orange powder coated Weight (GW): 62kg (136lb) Overall Dimensions (LxWxH): 548 x 196 x 249mm Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm) No Load Line Speed: 6.5m/min (21.3

The Original Orange Winch: Designed for heavy-duty recovery and off-road operations Heavy-Duty Recovery Capacity: Suitable for Recovery Trucks and 4x4 vehicles up to 7.5 Tons, designed for all off-road or recovery operations Durable Four Roller Fairlead: Tough four-roller fairlead construction with zinc plated rollers for enhanced durability and corrosion resistance Complete Rope and Hook System: Comes with 25m x 12mm galvanized steel wire rope, 1/2 inch Grade 70 forged clevis hook with safety catch and hand saver, zinc plated for corrosion resistance Ultra-Tough Gearbox Construction: Features a three-stage gearbox with hardened steel gears for maximum strength and reliability Maximum Impact Protection: Casing machined from billet steel providing superior protection against impacts and harsh conditions Powerful Pulling Capacity: Delivers 15,000lb (6,804kg) straight line pull for demanding recovery and industrial applications
