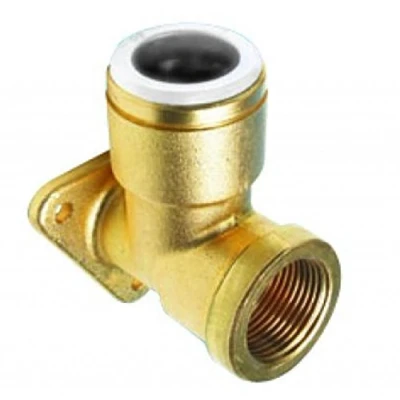

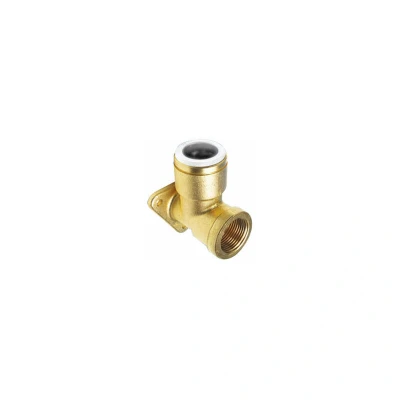

15mm x 1/2" SPEEDFIT Brass Backplate Elbow

The JG Speedfit Brass Back Plate Elbow is an essential component designed for connecting pipes using a female thread, proving ideal for bib taps in various plumbing and heating systems. Crafted from Dezincification Resistant (DZR) brass, this fitting is suitable for central heating systems and can efficiently handle both hot and cold water applications.

Versatile Push-Fit Solution

This product is specifically designed for compatibility with:

- Mains fed and indirect cold water systems

- Vented and unvented hot water systems

- Vented and sealed central heating systems

The Speedfit fittings are engineered to work seamlessly with copper pipes conforming to BS EN 1057 and Speedfit cross-linked polyethylene (PEX) barrier pipes that meet BS7291 standards.

Easy Installation

One of the key advantages of the JG Speedfit Brass Back Plate Elbow is its innovative push-fit connection method. To connect, simply push the fitting onto the plastic or copper pipe, ensuring a secure seal. In case disconnection is required, the easy-release mechanism allows users to push the collet towards the fitting body and pull the pipe out with minimal effort.

The installation process is significantly faster and safer than traditional methods, as it eliminates the need for hot works, glue, or flux. This feature makes it particularly advantageous for use in confined spaces where accessibility may be limited.

Standards and Approvals

JG Speedfit products are designed and manufactured under a fully integrated quality management system defined by B.S.I. to BS EN ISO9001 standards. They carry approvals from the Water Regulations Advisory Scheme and the British Board of Agrément (BBA). Additionally, the Speedfit PEM and PKM fittings, along with the Speedfit barrier pipe, have been kitemarked to BS7291 Part 1 and 3, Class S (Licence No. KM39767).

Durability and Compatibility

The brass back plate elbow is built to last, resistant to the deterioration often seen in other materials. However, it is crucial to note that Speedfit fittings are not suitable for stainless steel pipe or applications involving gas, fuel oil, or compressed air.

When using this fitting, it is important to support pipes adequately, avoiding undue stress on the connections. Pipes in ceilings and roof voids must be clipped every metre and positioned no closer than 60mm from the end of the fitting.

Additional Care Instructions

To maintain the integrity of the JG Speedfit fittings, they should only be used with water or oil-based paints, avoiding cellulose-based products, paint thinners, and aggressive household cleaning agents. While these fittings are unaffected by sunlight when used indoors, protecting them from ultraviolet light outdoors is recommended through lagging or painting.

In summary, the JG Speedfit Brass Back Plate Elbow is a reliable, efficient, and innovative solution for modern plumbing and heating needs, combining ease of installation with robust performance.
