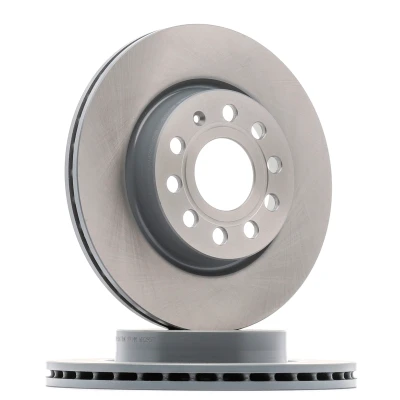

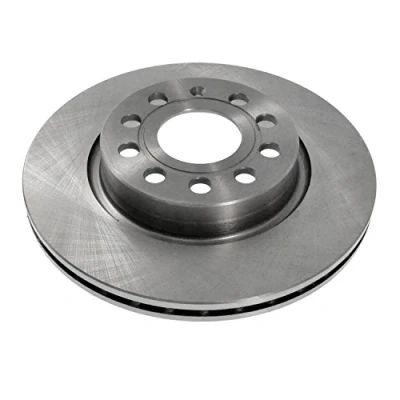

16D615301, 1K0615301AQ, 5C0615301, 5C0615301C, L1KD615301C Brake disc BLUE PRINT ADV184317 Front Axle 280mm 22mm 5 Hole 112mm internally vented Coated

Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 22 mm; No. of Wheel Bolt/Stud Holes: 5; No. of Fixing Holes: 5; Height or Thickness: 49,4 mm; Outer Diameter: 280 mm; Pitch Circle Diameter: 112 mm; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: front axle; Minimum Thickness of Brake Disc: 20,5 mm; Weight: 6,16 kg; Centering Diameter: 65 mm OE numbers (for comparison purposes only): Seat 1K0 615 301 AK; Skoda 1K0 615 301 AK; VW 1K0 615 301 AK; OEM numbers (for comparison purposes only): Delphi BG3832, Delphi BG3953, Textar 92120700, TRW DF4294, Textar 92120703 among others suitable for: Seat: Altea (5P), Altea Freetrack 4x4 (5P), Altea XL 4x4 (5P), Leon (1P), Toledo III (5P); Skoda: Octavia II (1Z), Octavia II 4x4 (1Z), Yeti (5L), Yeti 4x4 (5L); VW: Beetle (5C), Caddy 3 (2K), Caddy 3 4motion (2K), Golf 5 (1K), Golf 5 (5M), Golf 5 4motion (1K), Golf 5 Variant (1K), Golf 5 Variant 4motion (1K), Golf 6 (52), Golf 6 (5K), Golf 6 4motion (5K), Golf 6 Cabrio (51), Golf 6 Variant (AJ), Golf 6 Variant 4motion (AJ), Jetta 5 (1K), Rabbit (1K)

ADV184317; Brake disc; BLUE PRINT; Front Axle 280mm 22mm 5-Hole 112mm internally vented; for VOLKSWAGEN, AUDI, SKODA, SEAT, VW; 1K0615301AC, 1K0615301AK, 1K0615301S, 1K0615301AS, JZW615301A, 16D615301, 1K0615301AQ, 5C0615301, 5C0615301C, L1KD615301C
