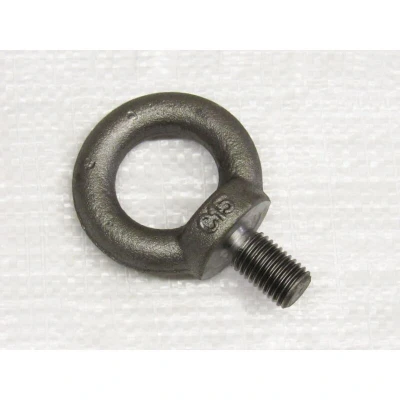

16MM 0.7 Ton Self Colour DIN580 Eyebolt M16 Drop Forged Lifting Eye Bolt 700KG Metric

General description Our M16 0.7 Ton Self Colour DIN580 Eyebolt is designed for various lifting applications, making it a popular choice in the lifting industry. These eyebolts are tested and certified for lifting, ensuring reliability and safety. Technical specifications Conforms To: DIN580 Finish: Self Colour Safe Working Load: 0.7 Ton (700KG) Dimensions: A (MM): 35 B (MM): 63 C (MM): 35 D (MM): 12 E (MM): 30 F (MM): 14 G (MM): 15 H (MM): 27 Pitch: 2.00 Other information Available in a range of sizes with options for zinc plated or self-coloured finishes. Test Certificate Included (Sent via eMail).

Conforms To - DIN580 Finish - Self Colour Safe Working Load - 0.7 Ton (700KG) A = 34.8MM, B = 63MM, C =35MM, D = 16MM, E = 13.6MM, F = 31.5MM, G = 15MM, H = 27MM Test Certificate Included (Sent via eMail)
