1pc Charnière pivot de porte douche en verre
Featured
|
£ 7.99 |
To Shop
|
|
£ 7.99 |
To Shop
|
|
£ 12.99 |
To Shop
|
Description
ManoMano

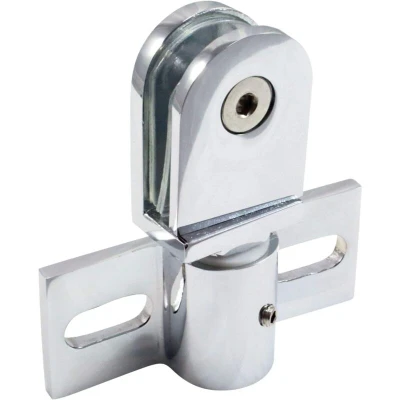

General description It is a polished chrome pivot hinge commonly used for glass doors and glass panels. Technical specifications Material: Copper Finish: Polished chrome Overall width of the mounting plate: 75 mm Distance between fixing holes: 66 mm (farthest point) and 28 mm (closest point) Diameter of mounting holes: 8.7 mm Overall height: 76.4 mm Maximum weight of the glass door: 45 kg Installation Requires a hole size of at least 8 mm for the glass shower door Diameter of bolts for mounting the glass door is approximately 7.7 mm Two hinges are needed, typically one for the top and one for the bottom of the glass panel Tools required: 5 mm Allen key and 2.5 mm Allen key
Description
(2)
General description It is a polished chrome pivot hinge commonly used for glass doors and glass panels. Technical specifications Material: Copper Finish: Polished chrome Overall width of the mounting plate: 75 mm Distance between fixing holes: 66 mm (farthest point) and 28 mm (closest point) Diameter of mounting holes: 8.7 mm Overall height: 76.4 mm Maximum weight of the glass door: 45 kg Installation Requires a hole size of at least 8 mm for the glass shower door Diameter of bolts for mounting the glass door is approximately 7.7 mm Two hinges are needed, typically one for the top and one for the bottom of the glass panel Tools required: 5 mm Allen key and 2.5 mm Allen key
