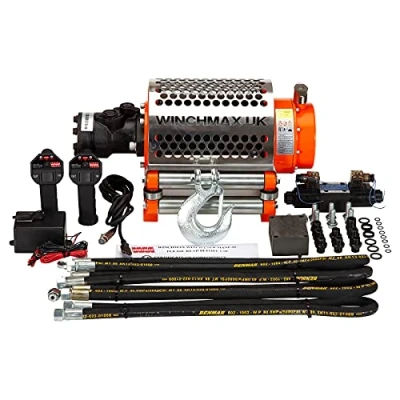

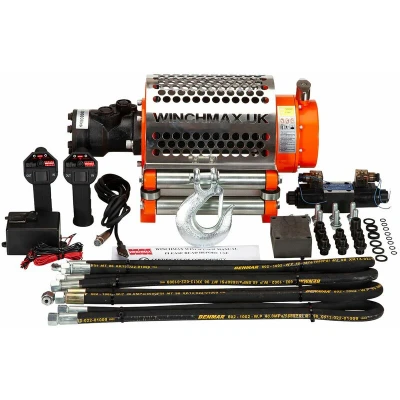

20,000lb (9,072kg) Original Orange z Hydraulic Winch, 25m x 14mm Steel Rope. 1/2 Inch Clevis Hook. 24v Control System.

General description The 20,000lb (9,072kg) Original Orange Z Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, and various industrial, commercial, and agricultural uses. This winch features a robust 24V control system and comes equipped with a 25m x 14mm galvanized steel wire rope, ensuring reliable performance in demanding conditions. Technical specifications Single line rated pull: 20,000lb (9,072kg) Motor: Hydraulic Gear train: 3 Stage Planetary Gear reduction ratio: 32:1 Clutch: Sliding Ring Gear Braking Action: Automatic Drum size: Diameter 88mm, Length 222mm Cable: 25m x 14mm diameter Hook: Clevis hook 1/2 inch, zinc-plated Fairlead: 4-Way Roller Fairlead Flow: 50-60 L/min Pressure: 10.8Mpa (108 Bar) Finish: Orange & Black Weight (GW): 70kg (154lb) Overall Dimensions: 548 x 196 x 249mm (LxWxH) Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm) Pressure Hose Connections: 18mm/1.5mm No Load Line Speed: 6.5m/min
