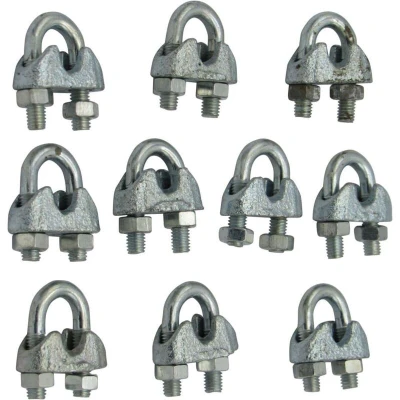

20MM Wire Rope Grips X10 Bulldog Clamp Cable Galvanised Commercial DIN741

General description Our 20MM Wire Rope Grips are manufactured from mild steel with a galvanised coating for corrosion resistance. They are suitable for use in rigging setups on boats or similar applications on land. These grips are designed to create loops of wire in a rope assembly or provide a temporary join when needed. This pack includes 10 grips. Technical specifications Product Code: SFCOMG20 Product Weight: 2.15 KG Dimensions: A: 41 MM B: 20 MM C: 27 MM D: 12 MM E: 75 MM F: 26.5 MM G: 54 MM Installation Prior to fitting, grease the threads on the nuts and bolts. Ensure spacing between grips is at least 6 times the diameter of the rope. Orient the grip correctly, with the 'u' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. Leave unused for 24 hours and check torque setting again, re-tighten if necessary. After the first application of load, re-check torque setting and re-tighten if necessary. Periodically
