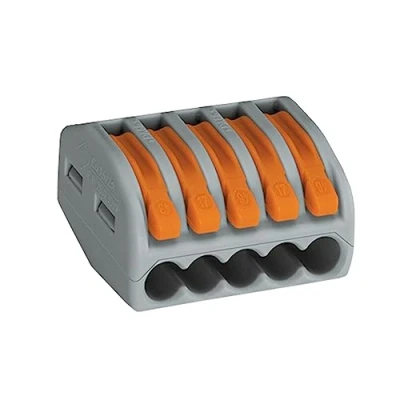

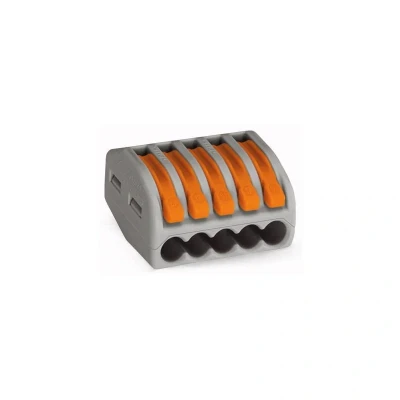

20x Wago 222-415 Classic Lever 5-Way Terminal 0.25 Litre Clip Clamp

The product is a compact, tool-free cage clamp wiring connector designed for both single-wire and fine-wired cables. It supports up to five conductors with a current rating of 32 A and a voltage rating of 400 V. The connector accommodates a wide cable range and is available in grey/orange. Each box contains 20 pieces.

Features

• Tool-free cage clamp for single or fine-wired cables
• Connects up to 5 conductors, 32 A
• Cable range: 0.08–2.5 mm² (solid) and 0.08–4 mm² (fine-stranded)
• Voltage rating: 400 V; line temp up to 85 °C, ambient 40 °C
• Box contents: 20 pieces; colour grey/orange

Technical specifications

• Colour: grey/orange
• Max line duration: 85 °C; ambient temperature 40 °C
• Suitable uses include blinds, awnings, motors for roller blinds, windows, bathrooms, and fans or pumps connections
• Connection: supports single-wire, flexible, and fine-wired cables with tin-plated variants
• Cage clamp – lock-in mechanism for various conductor types
• Series: compatible with Wago 222 family
