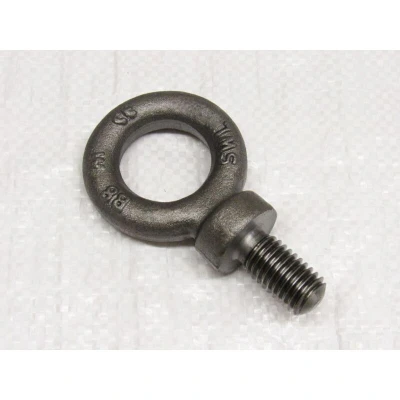

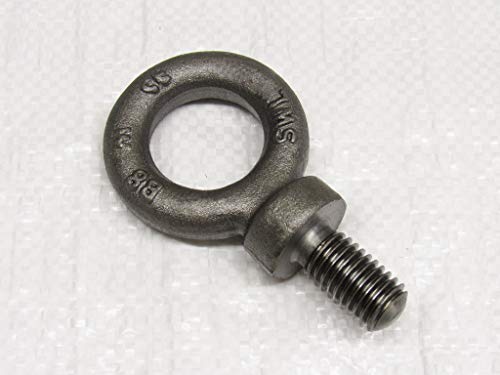

3/8" 0.25 Ton Self Colour Dynamo Eyebolt

Imperial Dynamo Eyebolt Thread DIA - 3/8" Finish - Self Colour CODE SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) THREADS PER INCH SFIDE06 0.1 19.5 42 22 6 9.5 25.5 10 20 20 SFIDE08 0.15 19.5 42 22 7.7 9.5 26 10 20 18 SFIDE10 0.25 19.5 42 21.5 9.3 10.5 25 10 20 16 SFIDE12 0.5 25 47.5 25 12.5 12 35 11 25 12 SFIDE16 0.8 28 57.5 31 15.7 13 41 12.5 30 11 SFIDE20 1.2 37 74 38.5 19 14 53 17 32 10 SFIDE22 1.6 38 78 44 21.8 15 59 16.5 43 9 SFIDE25 2 42.5 93.5 50.5 25 15 61 21 45 8 SFIDE32 3.5 51 105 52 30 19 79 26.5 50 7 These Eyebolts Are Excellent For Numerous Applications. These Are Hugely Popular Within The Lifting Industry As They Are Tested And Certified For Lifting. Dynamo Eyebolts Also Feature A Larger Eye Diameter For Applications That Require Larger Attachments. These Eyebolts Must Only Be Used For Straight Lifts And Used By A Competent Person. Test Certificate Included (Sent via eMail) Please Note We Supply A Huge Variety Of Lifting Equipment ***FREE DELIVERY***
