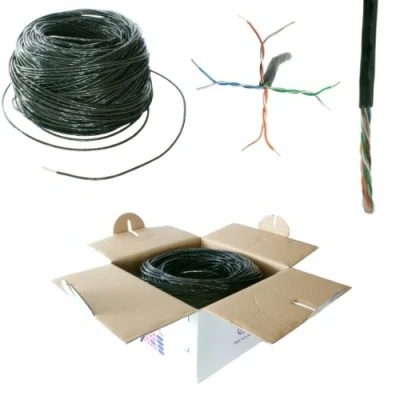

305m Outdoor External CAT5 Ethernet Network Cable Reel/Drum LAN UTP RJ45 CCA

Technical Features; Conductor Area CSA:0.13mm² (26 AWG) --- Reel Length (Metric):305m --- Cable Diameter 5mm --- Conductor Make-up:1/0.41mm --- No. of Cores:8 --- Quality CAT5 4 pair network cable --- Unshielded Twisted Pair (UTP) Wiring – Depending on the application in which you hope to use it, the cable can be wired in both the ‘straight through’ or ‘cross-over’ configurations. Please see description for more detail. Made From - CCA (copper clad aluminium) conductors. Ease of use - To make measuring easy the cable is marked at 1 metre intervals. Variants – There are 2 wiring configurations for CAT5 cable, TIA/EIA-568-A & TIA/EIA-568-B, they have no technical differences between them however they connect the wires to the connector in a different order, as shown in the wiring diagram above.
