35 Mm Perforatrice, Guide De Forage Trou Charnière Trouver Un Jig Outil Pour Bricolage Menuiserie

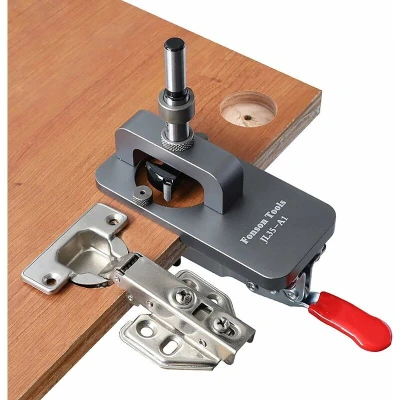

General description The 35 mm hinge drilling jig is designed for DIY woodworking projects, making it easy to install 35 mm hinges accurately without the need for professional assistance. Constructed from durable aluminum alloy, this tool ensures a long lifespan and reliable performance. It features a sturdy base with two countersunk screws for secure attachment to your work surface, enhancing stability during use. Technical specifications Material: Aluminum alloy Size: 120 x 60 x 120 mm (4.72 x 2.36 x 4.72 inches) Drilling depth: 12 to 13 mm Adjustable board thickness: 15 to 25 mm Distance from the hole to the edge: 5 mm Installation Secure the jig to your work surface using the two countersunk screws. Install the 35 mm hole opener and adjust the drilling depth to 12-13 mm, then lock the limit ring. Adjust the quick clamp's black pressure block to fit the board thickness between 15-25 mm. Usage Position the punch at the marked location on the board and tighten the locking block
