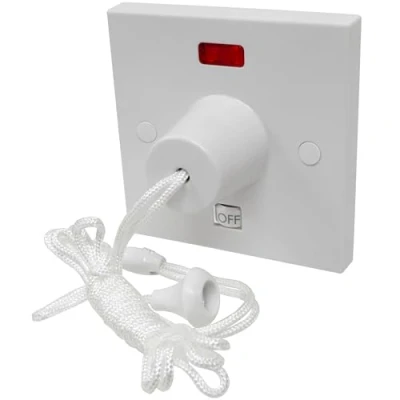

45 Amp Shower Switch Double Pole Pull Cord Ceiling with Neon and Mechanical Power Indicators

1 x 45 Amp Double Pole Pull Switch, Suitable for showers Upto 10.8kW at 240V Pull cord is Approximately 1.5 metres long with matching white end grip The switch is constructed from a strong moulded plastic with circular centre design Supplied with Steel screws to mount to a back box and white screw covers Red Neon lights up when switch is ON Mechanical 'ON' 'OFF' to indicate if switch is on or off We recommend a 44mm - 47mm Back box for mounting Refrain from using the switch unnecessarily: This switch is primarily for isolating the electrical supply during maintenance, not for routine use. In Other words always leave the pull switch ON and use the power button on the shower to turn the shower ON/OFF. This is the number one reason why these type of switches don't last long, they are not designed to be constantly switched off and on. LIN / LOUT is Live In / Out, NIN / NOUT is Neutral In / Out, Brass terminals either side are for Earth In / Out. Power Supply should be Wired to IN, Shower should be wired to OUT, If Wired the wrong way around the neon light will always stay on.
