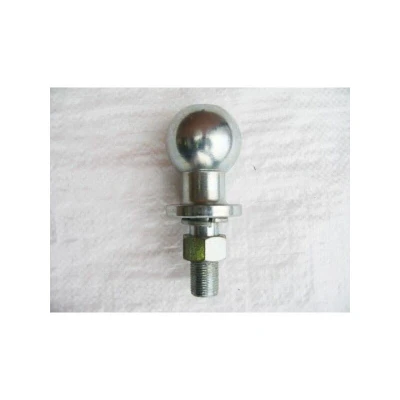

50MM ATV Tow Ball with 16MM Threaded Hitch Pin

ManoMano

General description This 50MM Tow Ball Pin with a 2' short shank and 16MM thread is designed for use with quad bikes to tow trailers or other compatible loads, ensuring that the total weight does not exceed the specified capacity. Technical specifications Thread Size: 16MM Ball Diameter: 50MM Max Capacity: 350 KG Dimensions: A: 16 MM B: 44.5 MM C: 50 MM D: 50 MM E: 126 MM F: 11 MM G: 28.5 MM H: 21 MM Other information Zinc plated for rust resistance against various weather elements. Product Code: SFAGS14805

Amazon

Ideal for attaching trailers and other equipment to your vehicle 350KG towing weight capacity Zinc plated finish providing protection against rusting and corrosion Perfect for towing trailers, caravans and much more A= 16MM, B= 44.5MM, C= 50.7MM, D= 50MM, E= 126MM, F= 11MM, G= 28.5MM, H= 21MM
