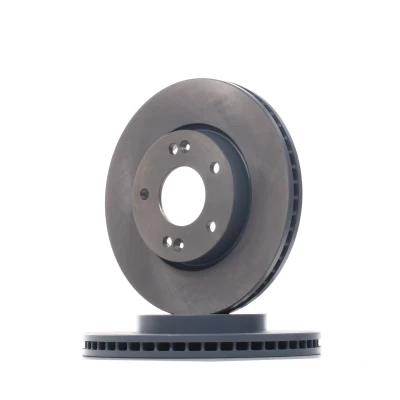

517121H000, 517121H100, 517122K100 Brake disc BLUE PRINT ADG043130 Front Axle 280mm 26mm 5 Hole 114mm internally vented Coated KIA: cee‘d I Estate

Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 26 mm; No. of Wheel Bolt/Stud Holes: 5; No. of Fixing Holes: 2; Height or Thickness: 47,3 mm; Outer Diameter: 280 mm; Pitch Circle Diameter: 114,3 mm; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: front axle; Minimum Thickness of Brake Disc: 24,4 mm; Weight: 7,090 kg; Centering Diameter: 69 mm OE numbers (for comparison purposes only): Hyundai 51712-1H100; KIA 51712-1H100; OEM numbers (for comparison purposes only): Textar 92133900, Textar 92133903, Delphi BG4281, Jakoparts J3300510, TRW DF4865S, Jakoparts J3300304, Bosch 0 986 479 991 among others suitable for: Hyundai: i30 I, iX20; KIA: Cee’d, Proceed, Soul, Venga

ADG043130; Brake disc; BLUE PRINT; Front Axle 280mm 26mm 5-Hole 114mm internally vented; for KIA, HYUNDAI; 517121H000, 517121H100, 517122K100, S517122K100
