535061 1 "Pressure Reducer with Pull Out Monobloc Laser. Caleffi

Plumbing Superstore

The Series 535 high-performance dial-up pressure reducing valves from Altecnic are ideal for hot and cold systems in semi-commercial and industrial applications. Pre-adjustable, they allow setting discharge pressure between 1 and 6 bar with an adjustment knob featuring a pressure setting indicator. The internal cartridge and control knob mechanism come as a single unit for easy removal, inspection, cleaning, and maintenance. Their compensated seat design ensures set downstream pressure remains stable despite upstream variations. The hydraulic profile enables low pressure losses. The cartridge's control stem housing uses a highly adhesion-resistant plastic to prevent scale deposits. These valves, available in multiple sizes, operate with a maximum inlet pressure of 25 bar at a temperature up to 40C. Crafted from high-performance DZR brass, they are easy to install, clean, and maintain. These pressure reducing valves are WRAS approved, ensuring reliability and quality.. Altecnic Series 535 Pressure Reducing Valve - 1 inch Alloy Brass Stainless Steel

Amazon

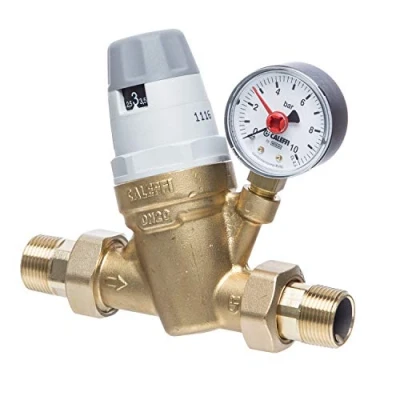

Pressure reducer with removable cartridge Monoblock. Alloy body antidezincificazione. With default indicator. Male A Filler Attachments. Upstream Max Pressure: 25 Bar. Downstream pressure calibration: from 1 to 6 bar. Operating Tmax: 40 °C. Certified to EN 1567. With manometer, 1/4 "F, Manufacturer: CALEFFI
