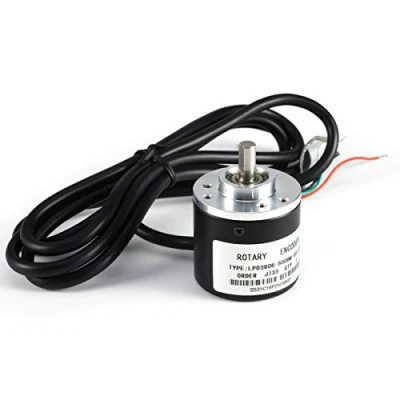

600P/R Incremental Rotary Encoder,Photoelectric Rotation Encoder DC 5V 24V AB 2 Phases Photoelectric Shaft 6mm Wide Voltage Power Supplies

【Excellent Performance】This product has 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses).Power source is DC5-24V. Stable working performance and good working condition. 【NPN Output】AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type. 【Length Measure】It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement. 【Wide Application】Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, height and weight scale, students racing robots. 【Notice】AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal.(Green = A phase, white = B phase, red = Vcc power +, black = V0).
