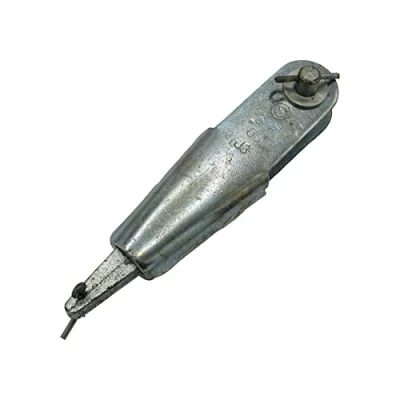

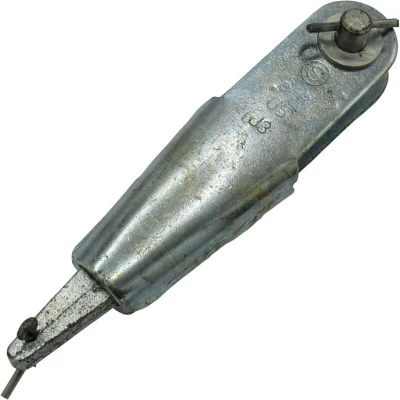

6MM 8MM Zinc Plated Rope Socket with Wedge and Pin Termination Wire Jaw

General description This 6MM-8MM Zinc Plated Rope Socket with Wedge and Pin is designed for applications requiring a jaw termination. It is primarily used in fencing applications but is versatile enough for various other uses. The zinc plated finish provides a degree of corrosion resistance. Technical specifications Size: 6MM-8MM Finish: Zinc Plated Product Codes and Dimensions: SFGRS04: A (110 MM), B (40.3 MM), C (14.7 MM), D (33.5 MM), E (51.9 MM), F (9.8 MM), G (4.1 MM) SFGRS06: A (150 MM), B (52.6 MM), C (16 MM), D (45.5 MM), E (81 MM), F (12 MM), G (6.3 MM) SFGRS09: A (190 MM), B (64.8 MM), C (18 MM), D (57.1 MM), E (91.6 MM), F (15.9 MM), G (10.1 MM)
