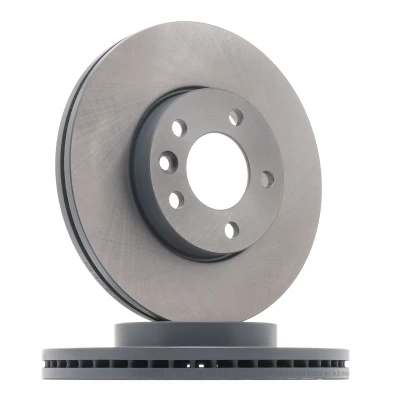

7E0615301D, 7H0615301D, JZW615301E Brake disc BLUE PRINT ADV184373 Front Axle 308mm 30mm 5 Hole 120mm internally vented Coated

Brake disc thickness: 29.5 mm, number of hole rims: 5, number of mounting holes: 1, height or thickness: 55.2 mm, inner diameter: 173.7 mm, outer diameter: 308 mm, bolt circle diameter: 120 mm, surface: oiled and coated, brake disc type: internally ventilated, installation: front axle, minimum brake disc thickness: 25.5 mm, weight: 8.5 kg, centre. EEEEEEEmm OE numbers (for comparison purposes only): VW: 7E0 615 301 D Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed Suitable for: VW: Transporter (7H), Transporter (SG), Transporter (7E), Transporter 4motion (SG), Touareg 4motion (7L), Transporter 4motion (7H), Transporter (7J), Transporter 4motion (7E), Transporter (SF), Transporter (7F) International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

ADV184373; Brake disc; BLUE PRINT; Front Axle 308mm 29,5mm 5-Hole 120mm internally vented; for VOLKSWAGEN, VW; 7E0615301D, 7H0615301D, JZW615301E
