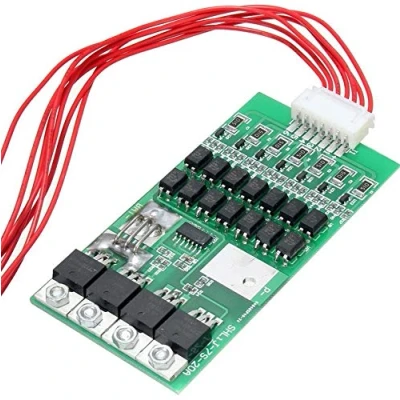

7S 20A Li ion Lithium Battery BMS PCB 18650 Charger Protection Board

【7S20A】7S 20A BMS PCB Protection Board For 18650 Li-ion Lithium Battery Cell Module Over Current Protection Board Balance 【Compatible】Supported battery type: 7 cells 4.2V lithium ion battery Compact design: Equilibrium current: 80 mA (VCELL=4.20V); Balancing the locus of control: 4.18/0.03 V; Overcharge threshold: 4.3/0.05 V; Overcharge time delay: 75mS; Overcharge release: 4.1/0.05 V; Discharge threshold: 2. .4/0.4 08 V; Discharge delay: 5 ms; Working current: 20 A; Over current threshold: 30 A. 【Resolutions】Overcharge protection function:Yes;Discharge protection function:Yes;Over current protection function:Yes;Balanced protection function:Yes;Over current release: Disconnect the load release;Short circuit protection function: Yes(Disconnect the load can be recovery.) 【Fast delivery】 Fast and high quality delivery from Spain buying in. TECNOIOT
