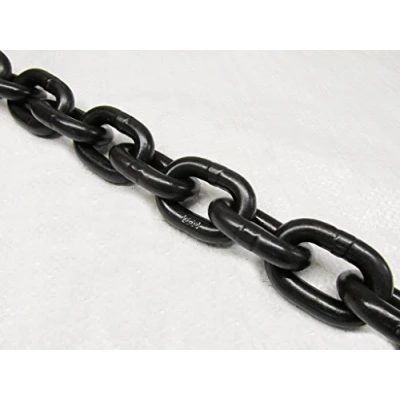

8MM Short Link Lifting Chain Grade 80 (Heavy Duty 2T Side Welded)

ManoMano

Specifications Material: Grade 80 Finish: Painted and Oiled Conforms To: BS EN 818-2 Safety Factor: 4:1 SWL: 2T Product Code: SFASSL08 Product Weight: 1.7kg Grade 80 Short Link Chain Product Code A (mm) B (mm) C (mm) D (mm) E (mm) SFASSL07 7 24 34 10 21 SFASSL08 8 28 39.5 11 24 SFASSL10 10 35 49 14.5 30 SFASSL13 13 45 64.5 19 39 SFASSL16 16 55 79 22.5 47.5 SFASSL20 20 71 98 31 60 SFASSL22 21 75 110 32 67 This Grade 80 short link chain is heavy duty and can be seen in the lifting industry and in various applications. Most commonly, chain such as this can often be found when used in chain slings. With painted and oiled finish it has corrosion resistant properties. Please enter the length required (in metres) into the quantity box during the checkout procedure. Dispatch can take 1-2 working days due to the chain needing to be cut to size. Price per 1 Metre.

Amazon

Size - 8MM Breaking Load - 2 Ton Grade 80 A = 13MM, B = 45MM, C = 64.5MM, D = 19MM, E = 39MM, Manufacturer: SecureFix Direct
