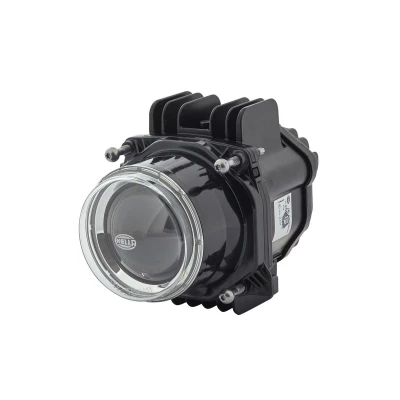

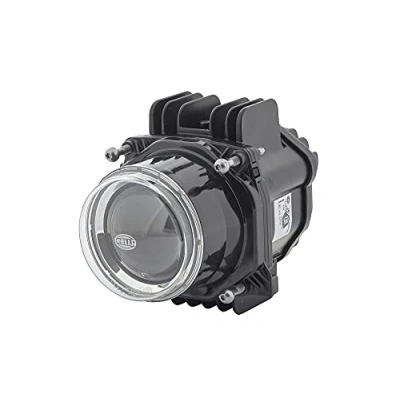

90mmLEDModul, E13159, E16189 Headlight HELLA 1BL 010 820 801

90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens. 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light. Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens. Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory). Can be ideally combined with other modules of the 90 mm series. Height: 143mm - Depth: 182mm - Lamp Type: LED - with control unit Light functions: 2 - with low beam
